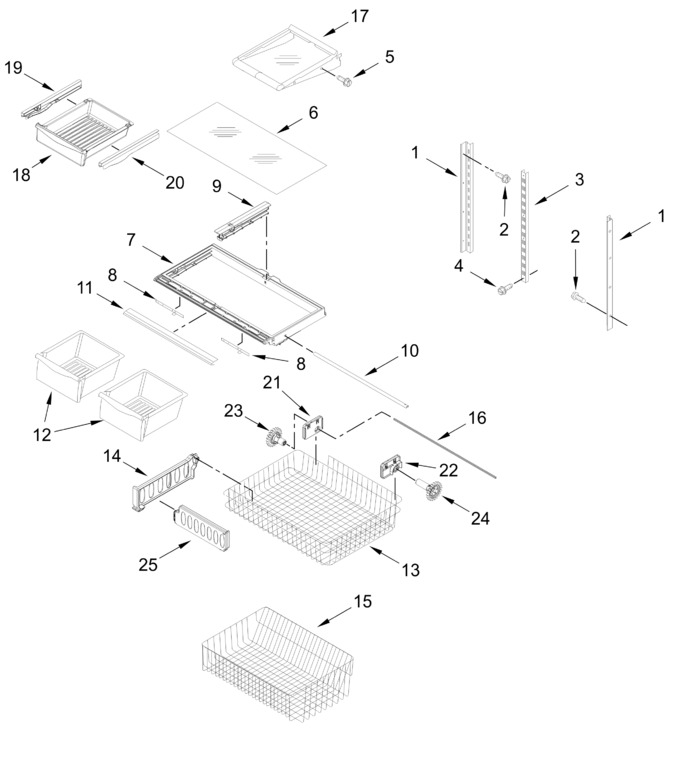

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10251969		Ladder, Side				$ 31.44
2	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
3	W10273463		Ladder, Center				$ 29.61
4	W10215666		Screw				$ 9.53
5	W11233072		Screw   (Replaces: 12990302V)			Immediately	$ 14.72
6	WP67006878		Glass, Crisper   (Replaces: 12204822)			Immediately	$ 223.47
7	W10858393		Frame, Crisper   (Replaces: W10671241)			Immediately	$ 164.24
8	WP67005864		Slide, Humidity Control   (Replaces: 12530805SP)			Immediately	$ 8.20
9	WPW10671238		Rail, Center Crisper   (Replaces: W10671238)			Immediately	$ 118.46
10	WP12227303WD		Brace, Crisper Cover   (Replaces: 12227303WD)				$ 111.25
11	WPW10231343		Trim, Crisper   (Replaces: W10231343)			Immediately	$ 99.65
12	WP67002633		Pan, Crisper   (Replaces: 12530505N)			Immediately	$ 173.29
13	W11281084		Basket, Freezer (upper)   (Replaces: W11115252)		Appelez-nous	-
14	W10241046		Divider, Basket (upper)			Immediately	$ 29.19
15	W11127323		Basket, Freezer (lower)   (Replaces: W11115780)			Immediately	$ 137.42
16	W10802339		Shaft, Rack				$ 104.17
17	W11402523		Shelf, Stationary   (Replaces: W11358360)			Immediately	$ 232.46
18	WP67001314		Pan, Deli   (Replaces: 12656404V)				$ 163.10
19	WP67001054		Glide, Deli (left Hand)   (Replaces: 12656601V)			Immediately	$ 8.82
20	WP67001053		Glide, Deli (right Hand)   (Replaces: 12656602V)			Immediately	$ 9.24
21	W10348259		Mount, Gear (left Hand)				$ 89.87
22	W10348260		Mount, Gear (right Hand)				$ 89.90
23	WPW10474716		Gear, Spur (left Hand)   (Replaces: W10474716)			Immediately	$ 32.42
24	WPW10474715		Gear, Spur (right Hand)   (Replaces: W10474715)			Immediately	$ 32.76
25	W10311695		Divider, Basket (upper)				$ 30.20
