SELECT A DIAGRAM

Cabinet Parts


Cabinet Trim Parts


Freezer Door And Basket Parts


Freezer Liner And Icemaker Parts


Lower Unit And Tube Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Top Grille And Unit Cover Parts


Upper Unit Parts

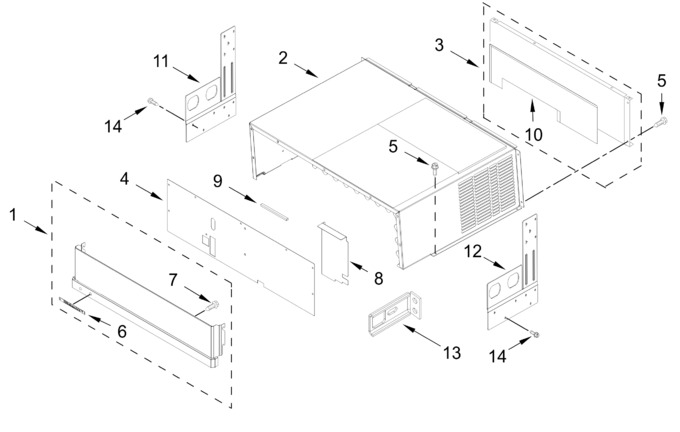

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11805069		Grille Assembly, Top (stainless)   (Replaces: W11756773)				$ 1,083.98
2	W11735285		Cover, Upper Unit   (Replaces: W11708444)			Immediately	$ 185.37
3	W11729400		Panel, Unit Back   (Replaces: W11708420)		Appelez-nous	-
4	W11435372		Cover, Unit Front			Immediately	$ 42.89
5	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
6	W11759445		Badge (smoked Chrome)   (Replaces: W11688412)			Immediately	$ 45.29
7	WP489399		Screw   (Replaces: 489399)				$ 6.57
8	W10645084		Divider, Air		Appelez-nous	-
9	W10645113		Gasket, Unit Cover		Appelez-nous	-
10	W11244166		Insulation, Unit Back Panel				$ 71.09
11	W11777557		Bracket, Install (left)   (Replaces: W11756499)		Appelez-nous	-
12	W11777558		Bracket, Install (right)   (Replaces: W11756500)				$ 121.76
13	W11777559		Bracket, Install (bottom)   (Replaces: W11767018)		Appelez-nous	-
14	W11233072		Screw   (Replaces: W11546547)			Immediately	$ 13.25

    View Diagram in Separate Window       Print Part List
