SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Freezer Door


05 - Refrigerator Door


06 - Unit


07 - Air Flow


08 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
3	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
5	WP489478		Screw   (Replaces: 489242)				$ 8.18
6	655411		Hole Plug		Appelez-nous	-
7	946355		Support, Stud (16)		Appelez-nous	-
8	946356		Stud (5)		Appelez-nous	-
9	1106982		Stud (5)		Appelez-nous	-
10	1110779		Grommet (14)		Appelez-nous	-
11	4388538		Stud (4)   (Replaces: 1110718)			Immediately	$ 32.85
12	1106979		Shelf		Appelez-nous	-
13	1110782		Trim Shelf		Appelez-nous	-
14	2155603		Shelf (small 1)		Appelez-nous	-
14	1106980		Shelf (large 2)		Appelez-nous	-
15	2148194		Bin, Freezer		Appelez-nous	-
16	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
17	WPW10119935		Socket, Assembly   (Replaces: 2155597)				$ 106.16
18	WP2155595		Light Lens   (Replaces: 2155595)				$ 88.36
20	2152644		Cover, Wiring		Appelez-nous	-
21	WP488729		Screw   (Replaces: 489176)			Immediately	$ 8.28
23	W10845583		Slide, Freezer Bin (right Side)   (Replaces: 1119293)				$ 130.12
23	1115383		Slide, Freezer Bin (left Side)		Appelez-nous	-
24	718257		Screw   (Replaces: 489100)		Appelez-nous	-
25	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
26	2155021		Support Clip		Appelez-nous	-

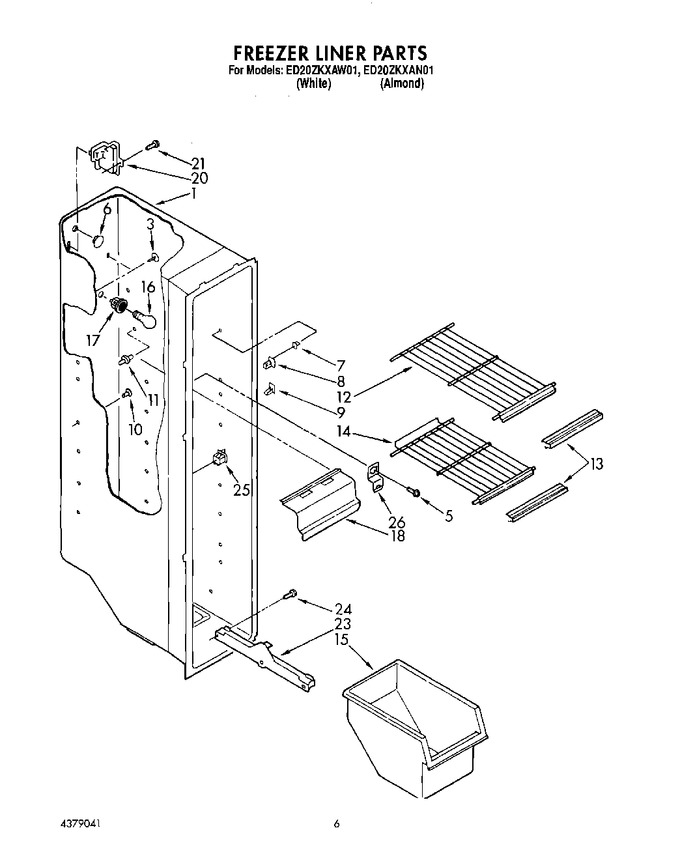

    View Diagram in Separate Window       Print Part List
