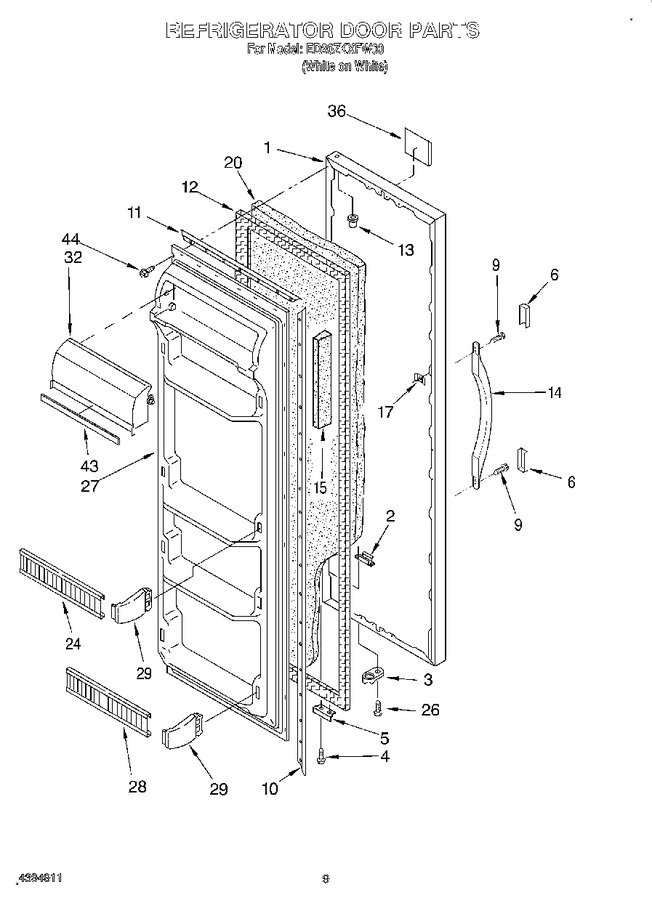

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194611W		Refrigerator Door Panel (also Order Item 20)		Appelez-nous	-
2	2155335		Tap, Plate		Appelez-nous	-
3	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 26.77
4	WP489483		Screw   (Replaces: 489420)				$ 10.27
5	2195950		Bracket, Door Stop				$ 5.84
6	WP2193353W		Endcap, Handle (2)   (Replaces: 2193353W)				$ 7.67
9	WP489491		Screw   (Replaces: 489491)				$ 6.57
10	1117766		Gasket Retainer, Side (2)				$ 36.55
11	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 242.33
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	2193345W		Handle, Center		Appelez-nous	-
15	2152266		Reinforcement, Shelf		Appelez-nous	-
17	941242		Screw Anchor		Appelez-nous	-
20	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
24	WP2182189		Trim, Door Shelf (2)   (Replaces: 2182189)				$ 90.50
26	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
27	1124961		Interior Door Panel (also Order Item No.15)		Appelez-nous	-
28	2182190		Trim, Door Shelf (2)		Appelez-nous	-
29	WP2196189		Endcap, Door Trim (right Side (4))   (Replaces: 2182123)				$ 12.65
29	WP2196190		Endcap, Door Trim (left Side (4))   (Replaces: 2182122)				$ 13.09
32	2148289		Compartment Door		Appelez-nous	-
36	2175383		Nameplate (white)		Appelez-nous	-
43	2188148		Trim, Door Compartment		Appelez-nous	-
44	WP489069		Screw, (30)   (Replaces: 489101)			Immediately	$ 7.56
