SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Optional Parts (not Included)

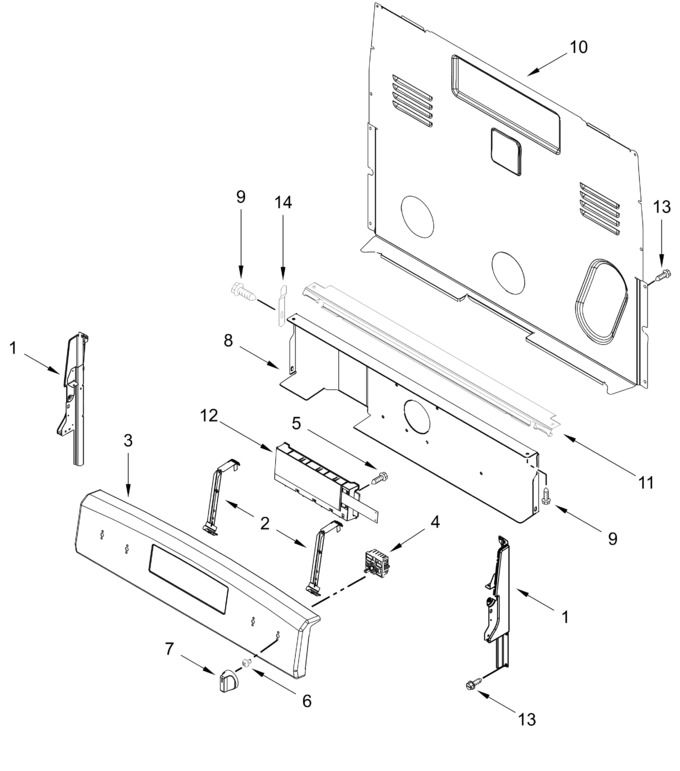

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black, Left)   (Replaces: W11130372)			Immediately	$ 138.45
2	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 76.33
3	W11550179		Console Panel (black)   (Replaces: W11027440)				$ 256.81
4	WP3148952		Switch, Infinite (yellow)   (Replaces: 3148952)			Immediately	$ 62.56
5	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
6	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
7	W11158169		Knob (black)   (Replaces: W11022718)			Immediately	$ 72.02
8	W10134247		Shield, Heat			Immediately	$ 322.94
9	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	W10525121		Bracket, Console Mounting				$ 88.97
12	W11594224		Control, Electronic (black)   (Replaces: W11536412)			Immediately	$ 339.76
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
14	3196200		Clip, Spring				$ 9.41
	W11594187		Control, Electronic (white)   (Replaces: W11536413)			Immediately	$ 338.00
	W11323155		Console Panel (white)   (Replaces: W11027441)			Immediately	$ 333.72
	W11158173		Knob (white)   (Replaces: W11022720)			Immediately	$ 19.39
	ARI1600794ED6BCA80AB6B39018C541EACB		(right Front, Left Rear)		Appelez-nous	-
	ARIB611E097F24A5B39CE73CD94D5F3EAC2		(left Front, Right Rear)		Appelez-nous	-
	W11219665		Endcap (black, Right)   (Replaces: W11130379)			Immediately	$ 40.65
	W11219370		Endcap (white, Right)   (Replaces: W11130378)				$ 54.75
	W11219365		Endcap (white, Left)   (Replaces: W11130371)				$ 38.21
	WP3149400		Switch, Infinite (orange)   (Replaces: 3148954)			Immediately	$ 81.46

    View Diagram in Separate Window       Print Part List
