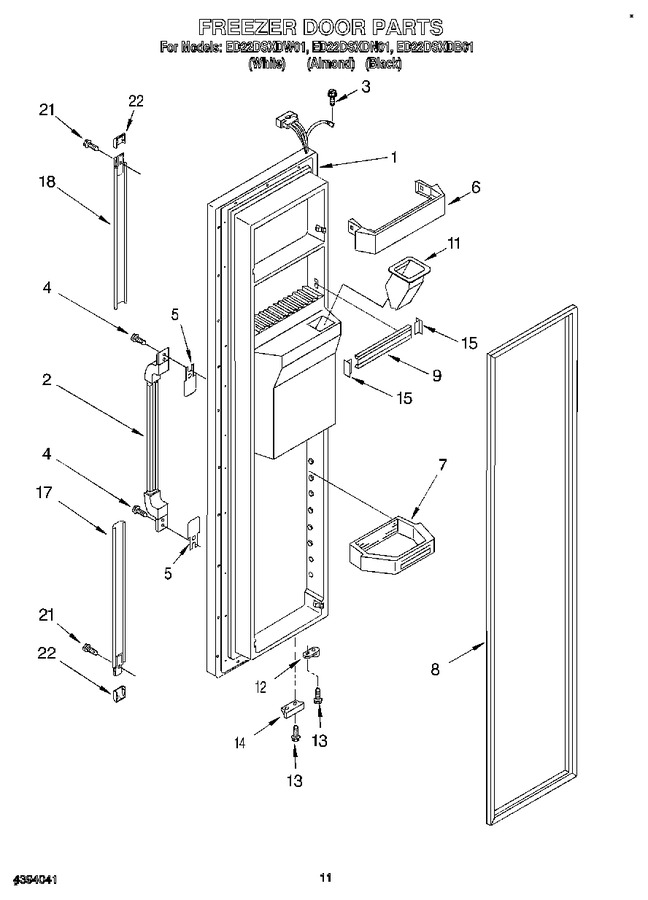

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171105		Freezer Door (includes Item No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2171106		Freezer Door (includes Item No.8 And Dispenser Front Parts) (almond)		Appelez-nous	-
1	2171107		Freezer Door (includes Item No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	2179367		Handle, Center (almond)		Appelez-nous	-
2	2179366		Handle, Center (white)		Appelez-nous	-
2	2179368		Handle, Center (black)		Appelez-nous	-
3	WP488234		Screw   (Replaces: 489422)				$ 7.08
4	WP489463		Screw   (Replaces: 489463)				$ 8.25
5	2179399		Shim, End Cap (2)		Appelez-nous	-
6	WP2156021		Trivet, Shelf (2)   (Replaces: 2156021)				$ 66.43
7	2179578		Shelf Bin (2)		Appelez-nous	-
8	2159072		Door Gasket, Magnetic (service) (mist Beige)				$ 323.60
8	2159080		Door Gasket, Magnetic (service) (black)				$ 325.91
9	WPW10307490		Trim, Door Shelf   (Replaces: 2171134)			Immediately	$ 24.27
11	2156145		Chute, Ice		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2155331		Bracket, Door Stop (chrome)		Appelez-nous	-
14	2155329		Bracket, Door Stop (black)		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
17	2174282		Extension, Bottom (white)		Appelez-nous	-
17	2174284		Extension, Bottom (black)		Appelez-nous	-
17	2174283		Extension, Bottom (almond)		Appelez-nous	-
18	2174277		Extension, Top (almond)		Appelez-nous	-
18	2174276		Extension, Top (white)		Appelez-nous	-
18	2174278		Extension, Top (black)		Appelez-nous	-
21	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
22	2174008		Cover, Endcap (black)		Appelez-nous	-
22	2174007		Cover, End Cap (almond)		Appelez-nous	-
22	2174006		Cover, Endcap (white)		Appelez-nous	-
