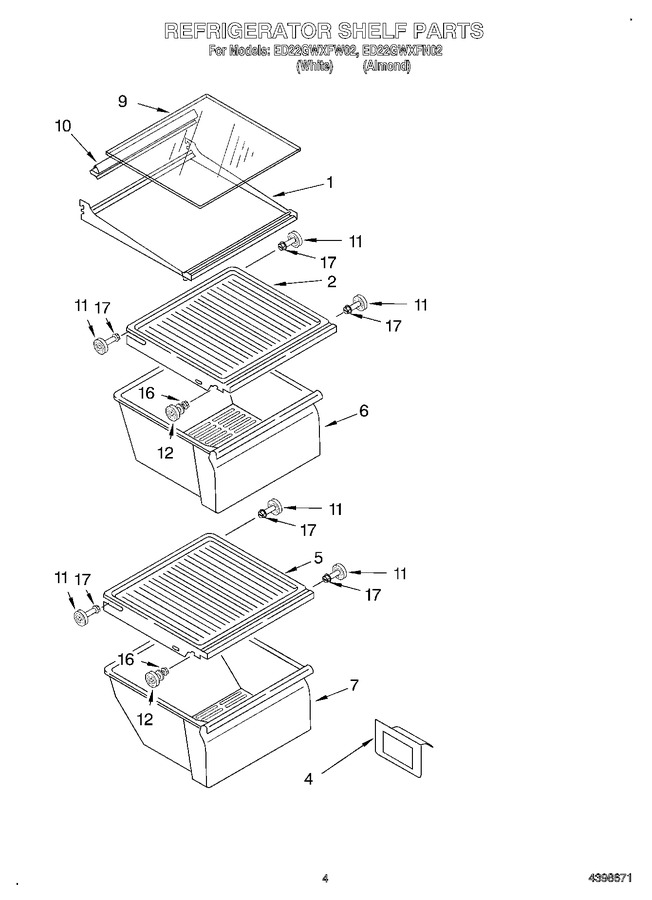

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163572		Shelf, Cantilever (3)		Appelez-nous	-
2	W10508993		Cover, Crisper   (Replaces: 2173392)				$ 305.85
4	2179350		Deflector				$ 85.89
5	W10508993		Cover, Meat Pan   (Replaces: 2173398)				$ 305.85
6	WP2188656		Pan, Crisper   (Replaces: 2174416)				$ 143.22
7	2174418		Meat Pan				$ 167.10
9	2177986		Glass, Shelf				$ 90.50
10	1125594		Retainer		Appelez-nous	-
11	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.87
12	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.77
16	WP3-24004-109		Screw   (Replaces: 3400894)				$ 9.14
17	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
