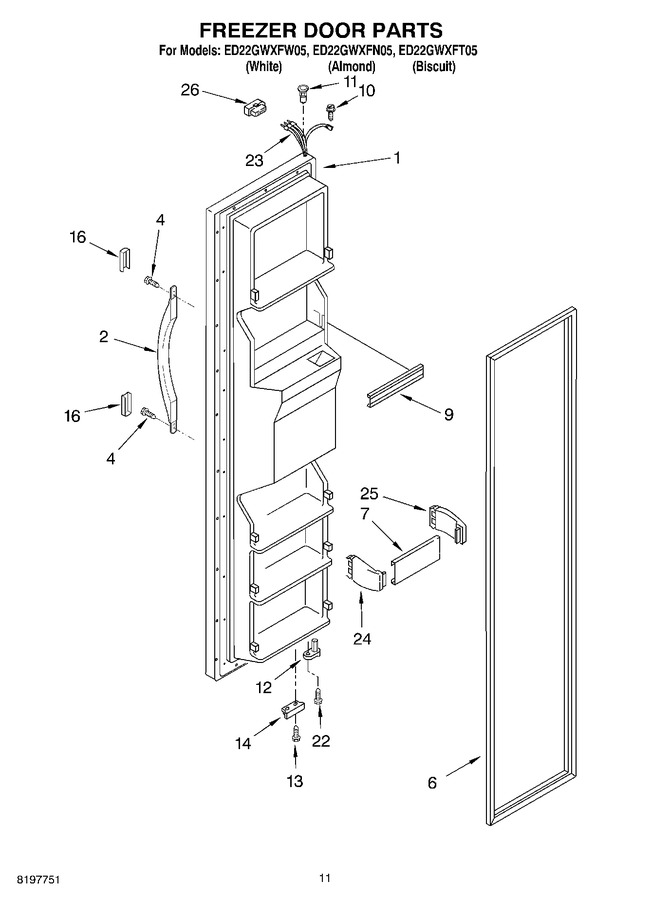

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2186533N		Freezer Door (includes No.6 And Dispenser Front Parts) (almond)		Appelez-nous	-
1	2186533T		Freezer Door (includes No.6 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2186533W		Freezer Door (includes No.6 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2186649B		Handle, Center (black)				$ 72.96
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
6	2159072		Door Gasket, Magnetic   (Replaces: 2196240)				$ 323.60
7	2195919		Door, Shelf (4) Shelf (4)		Appelez-nous	-
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 24.27
10	WP489128		Screw   (Replaces: 8281149)				$ 11.40
11	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2195950		Bracket, Door Stop				$ 5.84
16	2193353B		Endcap, Handle (2)				$ 5.85
22	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
23	2198273		Wire Harness		Appelez-nous	-
24	2195917		Endcap (left)		Appelez-nous	-
25	WP2195916K		End Cap (right)   (Replaces: 2195916)			Immediately	$ 13.18
26	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
