Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2163572 Shelf, Cantilever (3) Appelez-nous -
2 W10508993 Cover, Crisper   (Replaces: 2173392) Special Order $ 305.85

4 2179350 Deflector Special Order $ 85.89

5 W10508993 Cover, Meat Pan   (Replaces: 2173398) Special Order $ 305.85

6 WP2188656 Pan, Crisper   (Replaces: 2174416) Special Order $ 143.22

7 2174418 Meat Pan Special Order $ 167.10

9 2177986 Glass, Shelf Special Order $ 90.50

10 1125594 Retainer Appelez-nous -
11 4388538 Shelf Stud   (Replaces: 1110718) In-Stock Immediately $ 32.85

12 4388539 Shelf Stud   (Replaces: 2172943) Special Order $ 22.28


    View Diagram in Separate Window     Print Icon   Print Part List

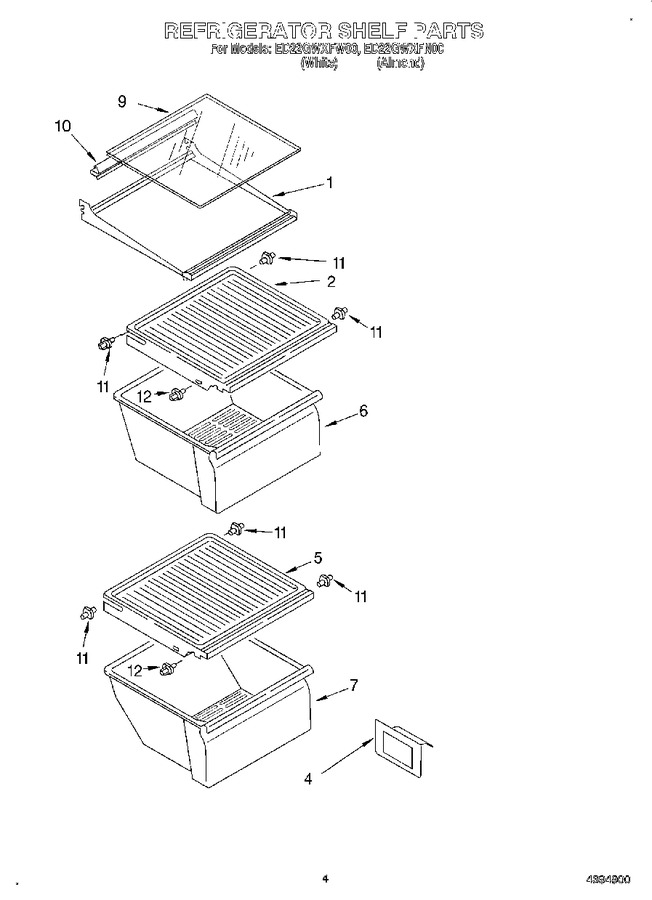

Diagram for ED22GWXFW00
