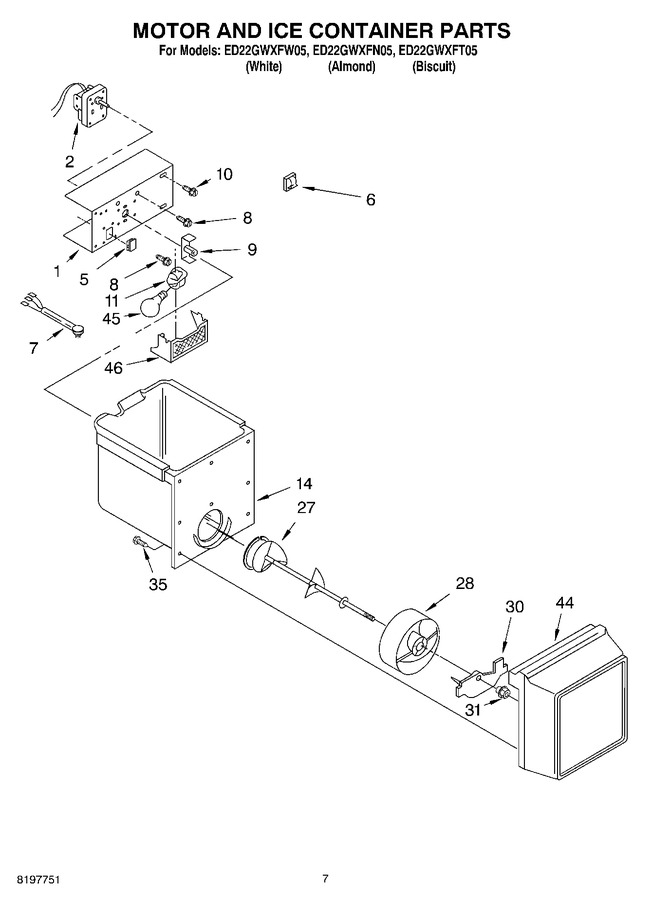

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10284487		Bracket, Motor   (Replaces: 2183728)				$ 119.81
2	2188384		Motor, Dispenser		Appelez-nous	-
5	2195013		Plug, Bracket		Appelez-nous	-
6	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 8.14
7	2206500		Wiring Assembly, Ice Dispenser		Appelez-nous	-
8	WP489399		Screw   (Replaces: 489399)				$ 7.30
9	WPW10169511		Coupling, Motor   (Replaces: 2205716)				$ 24.51
10	WP489478		Screw   (Replaces: 489478)				$ 8.18
11	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
14	WP2196089		Ice Container   (Replaces: 2196089)				$ 220.24
27	2196293		Auger		Appelez-nous	-
28	4388736		Drum   (Replaces: 2209781)				$ 96.97
30	2181722		Baffle				$ 22.61
31	946195		Nut, Bearing		Appelez-nous	-
35	WP488787		Screw   (Replaces: 488886)				$ 11.26
44	2174351		Front Cover Ice Container		Appelez-nous	-
45	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
46	WP2171706		Light Lens, Dispenser   (Replaces: 2171706)				$ 95.91
