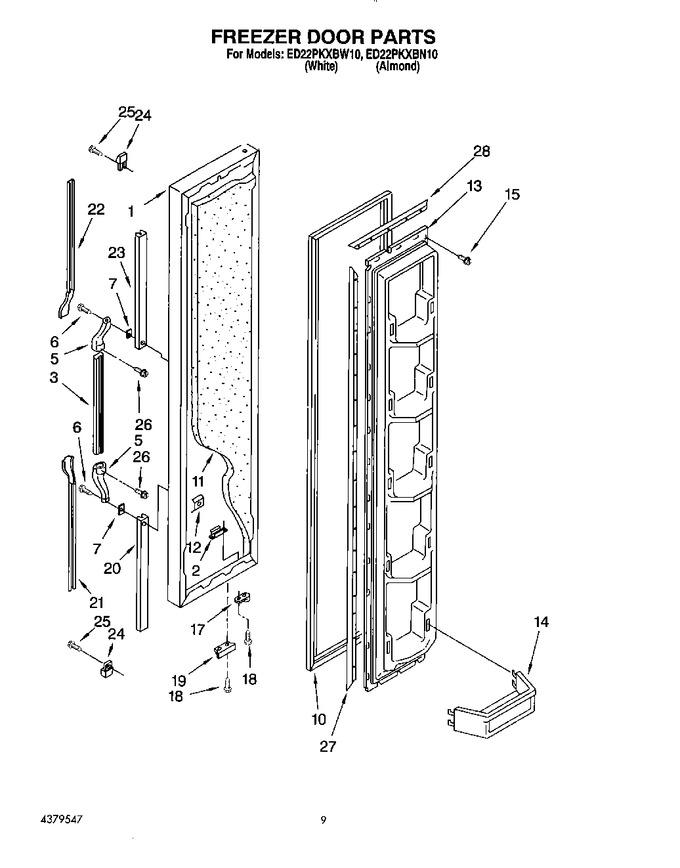

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4362050		Freezer Door Panel (also Order Item No.11) (almond)		Appelez-nous	-
1	4362049		Freezer Door Panel (also Order Item No.11) (white)		Appelez-nous	-
2	2155335		Tap, Plate		Appelez-nous	-
3	1118417		Handle, Center		Appelez-nous	-
5	1119359		End Cap (2)		Appelez-nous	-
6	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
7	935075		Shim, End Cap (2)		Appelez-nous	-
10	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 368.63
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	941242		Screw Anchor (2)		Appelez-nous	-
13	1129244		Panel, Interior Door		Appelez-nous	-
14	2170705		Trim, Door Shelf (4)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
17	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
18	WP999367		Screw   (Replaces: 489367)				$ 8.56
19	2155334		Bracket, Door Stop		Appelez-nous	-
20	1119360		Retainer, Insert		Appelez-nous	-
21	1119363		Insert, Handle (almond)		Appelez-nous	-
21	1119361		Insert, Handle (white)		Appelez-nous	-
22	1119367		Insert, Handle (white)		Appelez-nous	-
22	1119369		Insert, Handle (almond)		Appelez-nous	-
23	1119366		Retainer, Insert		Appelez-nous	-
24	2156220		End Cap (2)		Appelez-nous	-
25	489075		Screw		Appelez-nous	-
26	489022		Screw		Appelez-nous	-
27	1117766		Gasket Retainer, Side (2)				$ 36.55
28	1117767		Gasket Retainer, Top & Bottom		Appelez-nous	-
