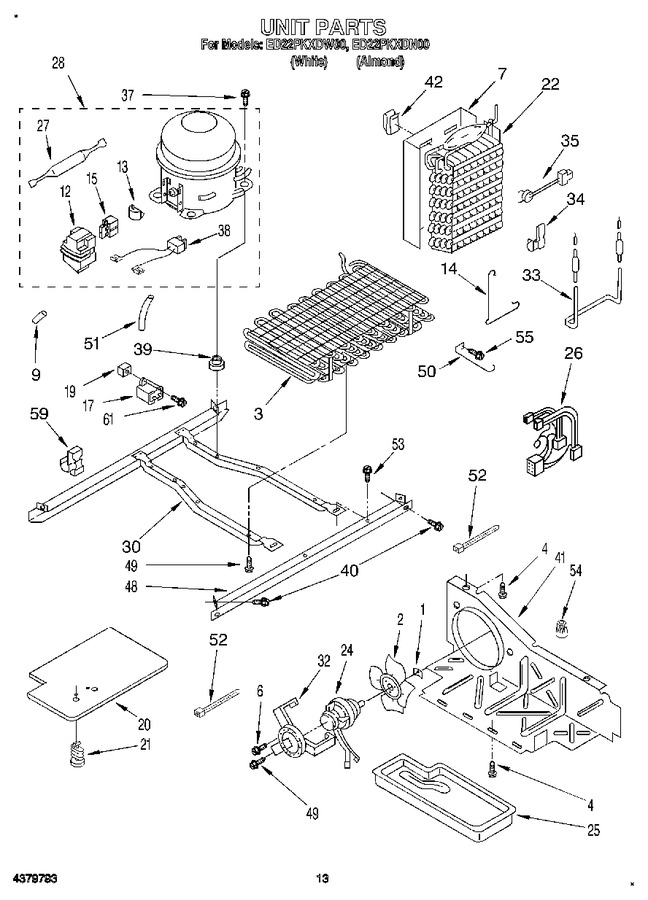

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	1108179		Fan, Blade				$ 49.54
3	2164513		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
6	681390		Screw   (Replaces: 489099)				$ 13.71
7	2149293		Heat Shield And Drain Pan		Appelez-nous	-
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.82
12	WP2162358		Cover   (Replaces: 2162358)				$ 95.29
13	4387535		Overload (includes Relay)   (Replaces: 2154760)				$ 191.05
14	2161324		Clip, Defrost Heater		Appelez-nous	-
15	N/A		Relay (see Overload)		Appelez-nous	-
17	2169137		Capacitor		Appelez-nous	-
19	509812		Screw Grommet		Appelez-nous	-
20	2160505		Unit Cover, Bottom		Appelez-nous	-
21	489396		Clip				$ 11.26
22	WP2188822		Evaporator   (Replaces: 2164518)			Immediately	$ 356.84
24	833697		Motor, Fan   (Replaces: 2162431)			Immediately	$ 109.14
25	2154114		Tray, Evaporator		Appelez-nous	-
26	2153994		Harness, Intermediate		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2164409)			Immediately	$ 57.13
28	W10309990		Compressor (includes Items 12, 13, 15, 17, 27 & 38) (also Order)   (Replaces: 2169426)			Immediately	$ 648.47
28	876765		Tube Kit			Immediately	$ 90.65
30	2304903		Unit Mounting Frame   (Replaces: 2160500)				$ 244.68
32	548695		Bracket, Fan Motor		Appelez-nous	-
33	WP2323197		Heater, Defrost   (Replaces: 2176064)			Immediately	$ 123.25
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2176066)			Immediately	$ 50.77
37	876811		Screw   (Replaces: 489373)				$ 7.79
38	WP2172890		Wire Assembly   (Replaces: 2172890)				$ 8.51
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	489340		Screw		Appelez-nous	-
41	W10896764		Baffle, Air   (Replaces: 2149128)				$ 101.20
42	2155547		Clip, Heat		Appelez-nous	-
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 42.61
51	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
52	851095		Wire Tie		Appelez-nous	-
53	WP489427		Screw   (Replaces: 489427)				$ 7.84
54	850145		Wire Connector		Appelez-nous	-
55	WP489478		Screw   (Replaces: 489242)				$ 8.18
59	2155658		Clip, Wire & Tube		Appelez-nous	-
61	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
61	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
61	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
61	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
61	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
61	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
61	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
61	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
61	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
61	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
61	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
61	978026		Valve, Access (5/16``)			Immediately	$ 134.49
61	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
61	978028		Valve, Access (1/2)		Appelez-nous	-
61	978029		Valve Access (5/8``)				$ 93.85
61	978030		Valve, Access (3/4``)				$ 137.25
61	876764		Valve, Access(3/16``)			Immediately	$ 95.92
61	350942		Primer White (13 Oz. Spray Can)				$ 94.14
61	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
61	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
61	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
61	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
61	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 243.14
61	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
61	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
61	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
61	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
61	833938		Kit, Terminal Connector				$ 8.47
61	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
61	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
61	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
61	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
	LIT2176776		Service & Wiring Sheet		Appelez-nous	-
	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 155.00
	LIT2182523		Energy Label		Appelez-nous	-
	LIT2180536		Use & Care Guide		Appelez-nous	-
	1117510		Torx Key				$ 5.84

    View Diagram in Separate Window       Print Part List
