SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Refrigerator Door


06 - Freezer Door


07 - Air Flow


08 - Control


09 - Unit, Lit/optional

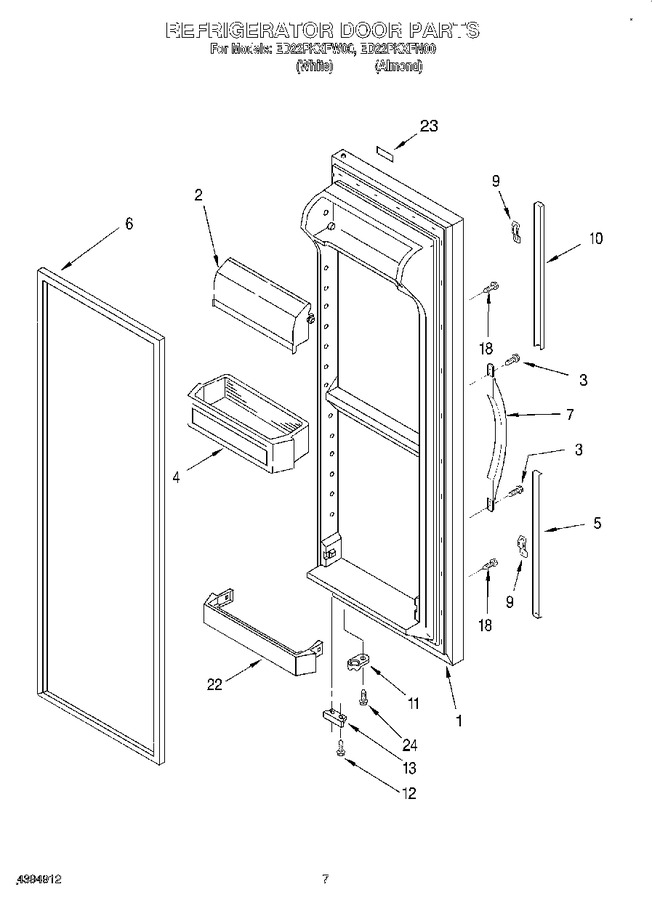

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194275W		Refrigerator Door (includes No.6) (white)		Appelez-nous	-
1	2194275N		Refrigerator Door (includes No.6) (almond)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 80.48
3	WP489491		Screw   (Replaces: 489491)				$ 6.57
4	2194917		Shelf Bin (3)		Appelez-nous	-
5	2194970N		Extension, Bottom (almond)		Appelez-nous	-
5	2194970W		Extension, Bottom (white)		Appelez-nous	-
6	2159073		Door Gasket, Magnetic (service)				$ 299.87
7	2193345N		Handle, Center (almond)		Appelez-nous	-
7	2193345W		Handle, Center (white)		Appelez-nous	-
9	WP2195327		Clip (4)   (Replaces: 2195327)				$ 6.99
10	2194972N		Extension, Top (almond)		Appelez-nous	-
10	2194972W		Etension, Top (white)		Appelez-nous	-
11	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 26.77
12	WP489483		Screw   (Replaces: 489420)				$ 10.27
13	2195950		Bracket, Door Stop				$ 5.84
18	WP3400852		Screw   (Replaces: 3400852)				$ 9.30
22	WP2177962K		Trivet, Shelf   (Replaces: 2177962)				$ 76.63
23	2175383		Nameplate (white)		Appelez-nous	-
23	2175384		Nameplate (almond)		Appelez-nous	-
24	WP3400012		Screw   (Replaces: 3400012)				$ 7.43

    View Diagram in Separate Window       Print Part List
