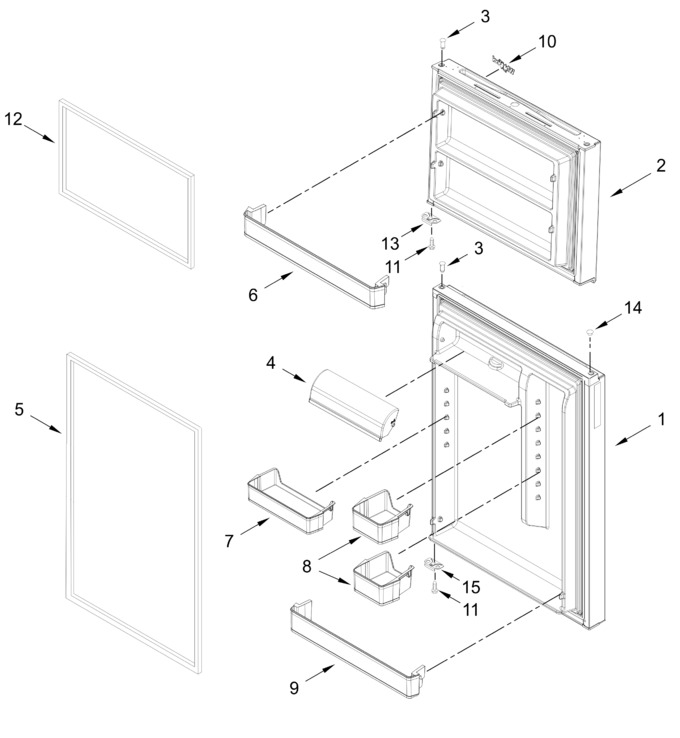

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11777205 | Refrigerator Door (black, Includes Door Gasket) (Replaces: W11750998) |
|
$ 194.36 | |||||
| 2 | W11777203 | Freezer Door (black, Includes Door Gasket) (Replaces: W11751006) |
|
- | |||||
| 3 | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 11.44 | |||||
| 4 | W11675283 | Compartment, Door (Replaces: W10601425) |
|
$ 30.91 | |||||
| 5 | W11240749 | Gasket, Rc Door (black) (Replaces: W10678768) |
|
Immediately | $ 270.62 | ||||
| 6 | W11807630 | Freezer Door Bin (Replaces: W11750547) |
|
- | |||||
| 7 | W11807631 | Bin, Rc Door (large) (Replaces: W11750600) |
|
$ 50.84 | |||||
| 8 | W11807375 | Refrigerator Door Bin (short) (Replaces: W11750604) |
|
$ 50.84 | |||||
| 9 | W11807633 | Refrigerator Door Bin (bottom) (Replaces: W11750538) |
|
$ 50.84 | |||||
| 10 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 11 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 12 | W11229610 | Gasket, Fc Door (black) (Replaces: W10667843) |
|
Immediately | $ 270.62 | ||||
| 13 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 14 | WP2212651 | Plug, Hinge (black) (Replaces: 2212651) |
|
$ 21.79 | |||||
| 15 | W11402852 | Bracket, Door Stop (Replaces: W10638692) |
|
$ 61.93 |
