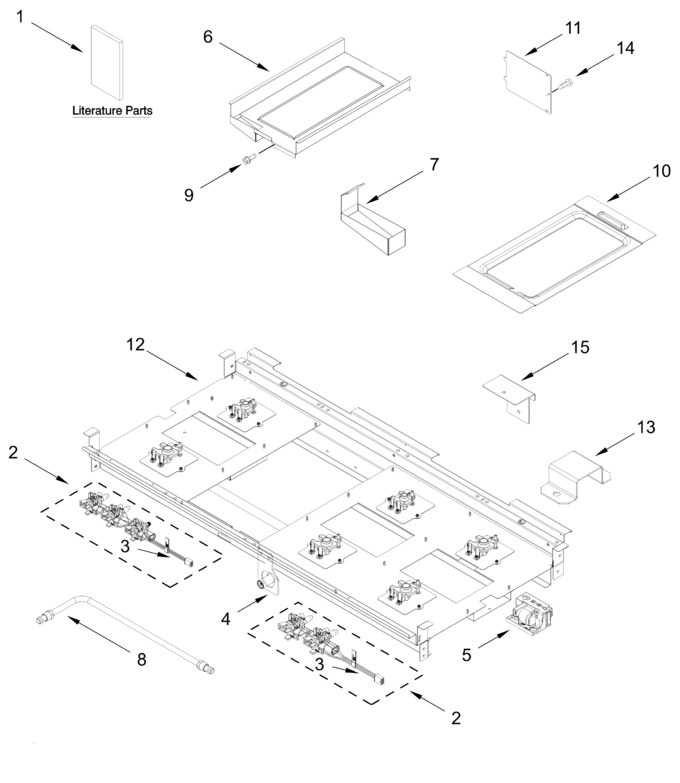

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11797100 | Valve Manifold Assembly (Replaces: W11651416) |
|
- | |||||
| 3 | W11788852 | Switch, Harness (Replaces: W11596340) |
|
$ 353.27 | |||||
| 4 | W11320153 | Bracket, Manifold (Replaces: W11121194) |
|
$ 71.97 | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 73.44 | ||||
| 6 | W11328011 | Capture, Grill Grease (Replaces: W11120957) |
|
- | |||||
| 7 | W11328012 | Tray, Grill Drip (Replaces: W11174414) |
|
- | |||||
| 8 | W11328265 | Tube, Manifold Supply (Replaces: W10892803) |
|
- | |||||
| 9 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 10 | W11328372 | Deflector, Grill Heat (Replaces: W11120965) |
|
- | |||||
| 11 | W10115843 | Cover, Ignition |
|
- | |||||
| 12 | ARIDBAA9548A1EB15B27ADE369B6B57A1AD | Box, Burner (not Serviced) |
|
- | |||||
| 13 | W11174418 | Bracket, Grill Orifice Holder |
|
- | |||||
| 14 | 7101P42660 | Screw |
|
- | |||||
| 15 | W11285353 | Bracket, Grill Grease Capture |
|
- | |||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | ||||||
| W11184746 | Guide, Internet Connectivity |
|
- | ||||||
| W11317786 | Harness, Communication (Replaces: W11200318) |
|
Immediately | $ 118.67 | |||||
| W10780278 | Harness, Door Lock |
|
Immediately | $ 86.28 | |||||
| W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 53.89 | ||||||
| 7101P48560 | Screw, Anti-tip Kit |
|
- | ||||||
| 4450800 | Screw, Grounding |
|
$ 12.12 | ||||||
| W11448012 | Harness, Main (48 In) |
|
$ 408.40 | ||||||
| W11328267 | Tube, Manifold Supply (Replaces: W10892802) |
|
- | ||||||
| W11328266 | Tube, Manifold Supply (Replaces: W10892801) |
|
- | ||||||
| W11785683 | Valve Manifold Assembly (Replaces: W11651415) |
|
$ 481.27 | ||||||
| W11565477 | Wiring Diagram (oven) |
|
- | ||||||
| ARI97EE49875860764C24B1F1C761487B6B | (right) |
|
- | ||||||
| W11785685 | Valve Manifold Assembly (Replaces: W11651409) |
|
$ 481.27 | ||||||
| W11508888 | Installation Instructions |
|
- | ||||||
| W11508896 | Use And Care Guide |
|
- | ||||||
| W11202275 | Sheet, Tech |
|
- | ||||||
| W11177312 | Guide, Quick Start |
|
- | ||||||
| ARIFAC3CD3E424B8251FFB54C385EAB94A6 | (left Front, Left Rear, And Grill) |
|
- | ||||||
| ARIECC5DF6730B23DD6AC93392F35EB35A4 | (right Center Front, Right Center Rear, Right Front, Right Rear) |
|
- | ||||||
| ARIF4444C9CC15AF901E399B849F8A4059C | (right Front And Right Rear) |
|
- | ||||||
| W11785278 | Switch, Harness (Replaces: W11596339) |
|
- | ||||||
| W11428599 | Kit, Lp Conversion (Replaces: W11422176) |
|
Immediately | $ 43.06 | |||||
| W11446239 | Ignitor Wire, Wire-electrode Broil (Replaces: W11311197) |
|
$ 21.57 | ||||||
| W11200330 | Harness, Cooktop |
|
- | ||||||
| ARI258DA94C9CF5E70E3AC8179901954C3C | (right Center Front, Right Center Rear) |
|
- | ||||||
| W11575704 | Wiring Diagram (cooktop) |
|
- | ||||||
| W11446236 | Ignitor Wire, Wire-electrode Bake (Replaces: W11311196) |
|
$ 19.04 | ||||||
| W10624584 | Cord, Power |
|
$ 170.61 | ||||||
| ARI5176DC7BCD528CAA83FE8E7749EF8817 | (right Center) |
|
- | ||||||
| ARI55C06F183F5209A80F64451115E0C931 | (left) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11317791 | Harness, Wifi (Replaces: W11242785) |
|
$ 102.35 |
