Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11233380 Fan Assembly, Radial   (Replaces: W10769486) In-Stock Immediately $ 287.06

2 W10370680 Fitting, Drain Special Order $ 34.05

3 W11235099 Cover, Led Side   (Replaces: W10816886) Appelez-nous -
4 W11233381 Strip Assembly, Led (left)   (Replaces: W10826246) Special Order $ 204.09

5 W11642294 Evaporator And Heater Assembly   (Replaces: W11351164) In-Stock Immediately $ 335.92

6 W10225833 Grommet, Motor Special Order $ 37.52

7 67006425 Screw   (Replaces: 12990511) In-Stock Immediately $ 6.57

8 W11245103 Cover, Led Top   (Replaces: W10816890) Appelez-nous -
9 W11245104 Strip, Top Led   (Replaces: W10826248) Appelez-nous -
10 W11233384 Strip Assemby, Light   (Replaces: W10914639) In-Stock Immediately $ 185.30

11 W11235114 Gasket Assembly, Air Tower (includes Air Tower)   (Replaces: W11176554) Special Order $ 88.14

12 W11235115 Damper Assembly, Duct (includes Heater)   (Replaces: W10872906) In-Stock Immediately $ 197.68

13 W11036131 Bracket Assembly, Upper Air Tower (includes Rubber Rivets, Washers And Screws) Appelez-nous -
14 W11036132 Bracket Assembly, Lower Air Tower (includes Rubber Rivets, Washers And Screws) Appelez-nous -
15 W11235116 Duct, Deli   (Replaces: W10816934) Special Order $ 93.34

16 W11235118 Gasket, Deli Duct   (Replaces: W10916552) Appelez-nous -
17 W11245112 Duct Assembly, Mullion   (Replaces: W10863617) Appelez-nous -
18 W11235124 Harness, Damper   (Replaces: W10890824) Appelez-nous -
19 W11763849 User Interface Assembly   (Replaces: W11383506) In-Stock Immediately $ 633.14

20 W11775254 Grille, Air Return (black)   (Replaces: W11761900) Appelez-nous -
21 ARI1BA464D72C84DA7297AB1B09D16F5BB3 Liner (not A Serviceable Part) Appelez-nous -
22 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 7.56

23 W11235123 Panel Assembly, Air Tower   (Replaces: W10816938) Special Order $ 341.72

24 W11234552 Light, Led   (Replaces: W10903460) Appelez-nous -
25 W11257222 Screw   (Replaces: W11224718) Appelez-nous -
26 W11234553 Wire Assembly, Icemaker (includes Thermistor)   (Replaces: W10909591) Special Order $ 129.64

27 W11646196 Icemaker Assembly   (Replaces: W11391031) In-Stock Immediately $ 216.56

28 W11234555 Cover, Icemaker (black)   (Replaces: W10880333) Special Order $ 21.42

29 W11234825 Ladder, Shelf (left, Includes Screw Guide)   (Replaces: W10905671) In-Stock Immediately $ 139.46

30 W11234826 Thermistor   (Replaces: W11084854) In-Stock Immediately $ 113.75

31 W11235125 Cover, Thermistor   (Replaces: W10912104) Special Order $ 97.29

32 W11234828 Screw (black)   (Replaces: W11288606) Appelez-nous -
33 W11642296 Heater, Defrost   (Replaces: W11312288) Special Order $ 101.36

34 W11515313 Tube Assembly, Fill (includes Heater)   (Replaces: W11365533) In-Stock Immediately $ 270.84

35 W11553819 Insulation, Sound Deadening   (Replaces: 2169104) In-Stock Immediately $ 13.29

36 W11299416 Cover, Evaporator Insulation   (Replaces: W10780861) Appelez-nous -
37 W11299413 Gasket, Evaporator Panel   (Replaces: W10895214) Appelez-nous -
38 W11646145 Cover Assembly, Evaporator (includes Insulation)   (Replaces: W11441794) Appelez-nous -
39 W11299623 Cover, Evaporator Panel (u Shape)   (Replaces: W10895218) Appelez-nous -
40 W11302581 Cover, Manifold   (Replaces: W10816945) Appelez-nous -
41 W11300485 Block Assembly, Evaporator Bypass (includes Foil)   (Replaces: W10876967) Appelez-nous -
42 W11302578 Crossbar, Control (upper)   (Replaces: W10816924) Appelez-nous -
43 W11302579 Crossbar, Control (lower)   (Replaces: W10887668) Appelez-nous -
44 W11300483 Block, Air Bypass (left Hand)   (Replaces: W11216534) Appelez-nous -
45 W11245109 Wall, False   (Replaces: W10816929) Appelez-nous -
46 W11642297 Harness, Evaporator (includes Thermistor)   (Replaces: W11574922) In-Stock Immediately $ 105.05

47 WP98008545 Screw (black)   (Replaces: W10308487) Special Order $ 16.74

ARI01A2781A3F964B0DAEAA0FEA5F13BC43 (suction Line To Evaporator) Appelez-nous -
W11506619 8 Nk Ms 00 In-Stock Immediately $ 23.29

W11504451 (3/1.8 Nr Ms 00) In-Stock Immediately $ 41.63

W11300484 Block, Air Bypass (right Hand)   (Replaces: W11216533) Appelez-nous -
ARI500F2B538D318C1E3390E0716ECE69B7 (also Order The Following Lokring™ Parts) Appelez-nous -
ARI9B437A9AB478C7E2DEB1C4CC29D600EE (capillary Tube To Evaporator) Appelez-nous -
W11234551 Ladder, Shelf (right, Includes Screw Guide)   (Replaces: W10905672) In-Stock Immediately $ 139.46

W11233382 Strip Assembly, Led (right)   (Replaces: W10901633) Special Order $ 271.15


    View Diagram in Separate Window     Print Icon   Print Part List

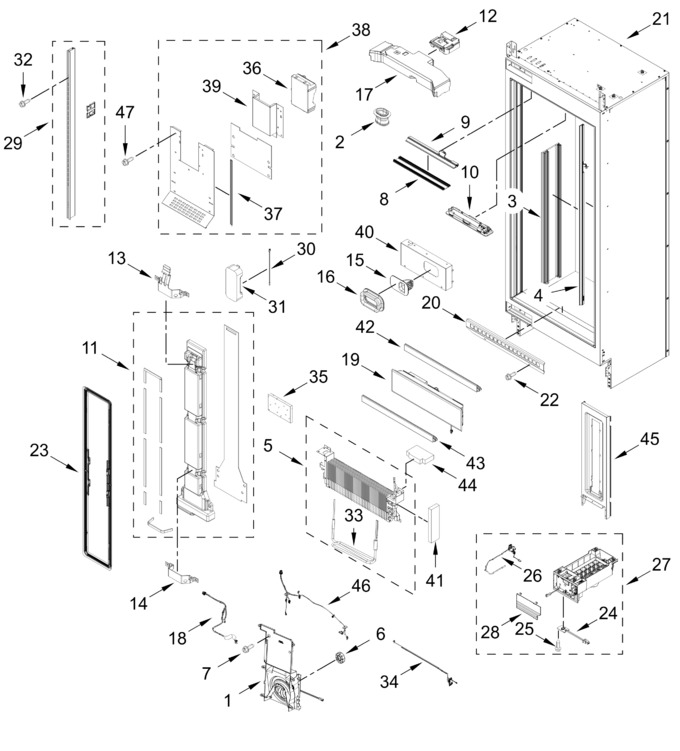

Diagram for JBZFL24IGX20
