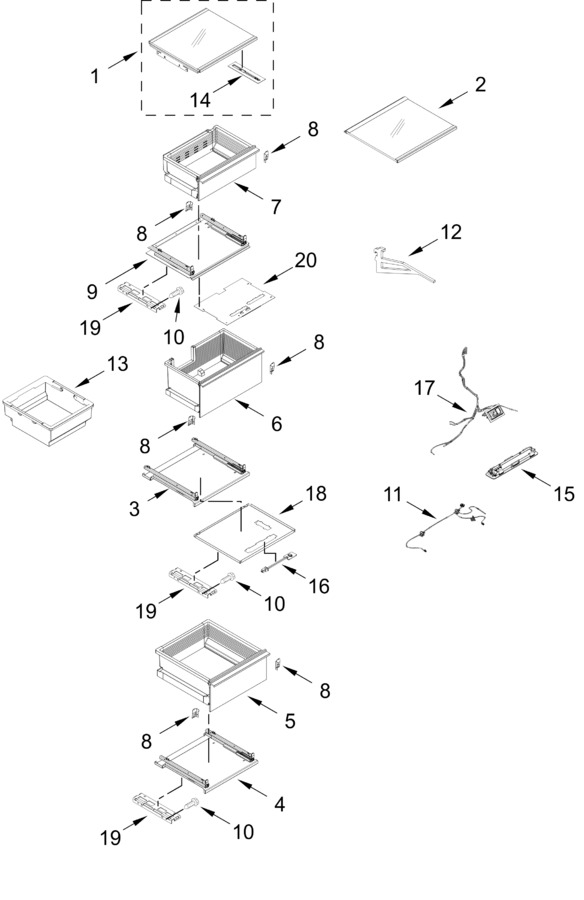

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11307252		Shelf Assembly, Deli (includes Thermistor)   (Replaces: W10824593)		Appelez-nous	-
2	W11307256		Shelf Assembly   (Replaces: W11032681)				$ 279.70
3	W11306840		Support Assembly, Upper Crisper Slide   (Replaces: W10824119)		Appelez-nous	-
4	W11306841		Support Assembly, Lower Crisper Slide   (Replaces: W10821600)		Appelez-nous	-
5	W11307275		Pan Assembly, Crisper (lower)   (Replaces: W10816844)		Appelez-nous	-
6	W11307277		Pan Assembly, Ice Crisper (upper)   (Replaces: W10816832)		Appelez-nous	-
7	W11247584		Pan Assembly, Deli   (Replaces: W10816763)		Appelez-nous	-
8	W11235126		Retainer Clip (left)   (Replaces: W10856559)		Appelez-nous	-
9	W11247585		Support Assembly, Deli Slide   (Replaces: W10824232)		Appelez-nous	-
10	W11247538		Screw   (Replaces: W10882791)			Immediately	$ 13.28
11	W11247586		Harness, Crisper Led   (Replaces: W10909589)		Appelez-nous	-
12	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 46.48
13	W11234515		Bucket Assembly, Ice   (Replaces: W10875428)				$ 280.14
14	W11265008		Thermistor (includes Cover)			Immediately	$ 116.82
15	W11233384		Strip Assemby, Light   (Replaces: W10914639)			Immediately	$ 185.30
16	W11234552		Light, Led   (Replaces: W10903460)		Appelez-nous	-
17	W11299625		Harness, Mullion   (Replaces: W11238953)				$ 133.30
18	W11299626		Plate, Crisper Led Support   (Replaces: W10902247)		Appelez-nous	-
19	W11302039		Bracket, Support   (Replaces: W11045476)		Appelez-nous	-
20	W11775257		Panel, Mullion (black, Bottom)   (Replaces: W11761899)		Appelez-nous	-
	W11235128		Retainer Clip (right)   (Replaces: W10856558)		Appelez-nous	-
