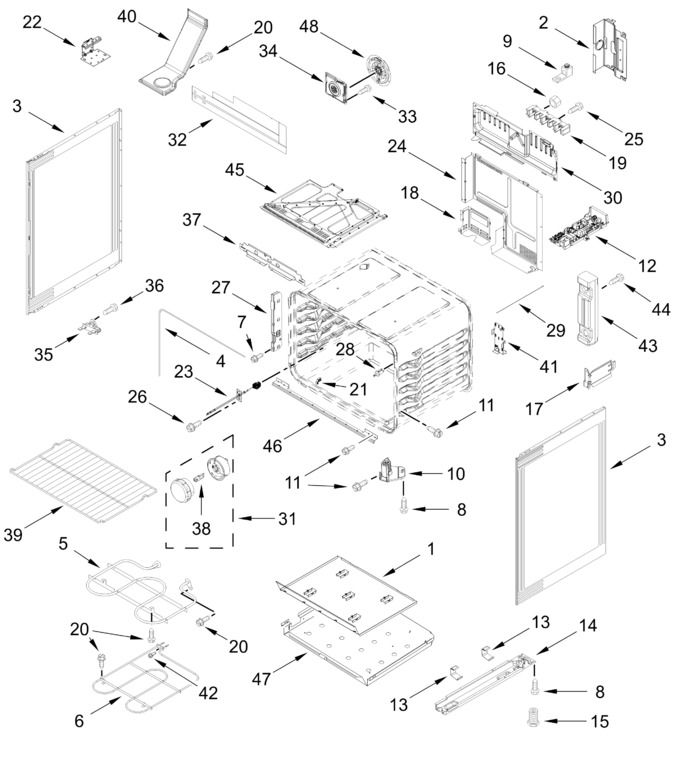

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11729934 | Shield, Heat (Replaces: W11310684) |
|
- | |||||
| 2 | W11750423 | Bracket, Service (Replaces: W11736680) |
|
- | |||||
| 3 | W11727013 | Panel, Side (white) (Replaces: W11445761) |
|
$ 261.26 | |||||
| 4 | W11542153 | Seal, Door (Replaces: W11491751) |
|
Immediately | $ 45.18 | ||||
| 5 | W10856603 | Element, Broil (Replaces: W10308476) |
|
Immediately | $ 172.30 | ||||
| 6 | WP9755770 | Element, Bake (Replaces: 9755770) |
|
Immediately | $ 174.47 | ||||
| 7 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 8 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 9 | WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 7.98 | |||||
| 10 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 11 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 12 | W11817173 | Control, Appliance (Replaces: W11798450) |
|
Immediately | $ 364.59 | ||||
| 13 | W10137382 | Clip, Panel |
|
Immediately | $ 43.58 | ||||
| 14 | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 56.39 | |||||
| 15 | WPW10058460 | Foot, Leveling (rear) (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 16 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 7.37 | ||||
| 17 | W10404688 | Clip, Oven Support |
|
$ 15.92 | |||||
| 18 | W11729938 | Corner, Cover (Replaces: W11596201) |
|
$ 45.42 | |||||
| 19 | W11736123 | Block, Terminal (without Ground Strap) (Replaces: W11750818) |
|
$ 14.52 | |||||
| 20 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 21 | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 17.37 | ||||
| 22 | W11727012 | Bracket, Cooktop Console (Replaces: W11287215) |
|
- | |||||
| 23 | W11730224 | Sensor (Replaces: W11633068) |
|
Immediately | $ 44.03 | ||||
| 24 | W11747641 | Side, Cover (Replaces: W11633166) |
|
- | |||||
| 25 | W11684512 | Screw (Replaces: 3400080) |
|
$ 13.33 | |||||
| 26 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 27 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 28 | W11620712 | Switch, Door (Replaces: W11511828) |
|
Immediately | $ 41.68 | ||||
| 29 | 9757239 | Rod, Door Switch |
|
$ 86.73 | |||||
| 30 | W11813672 | Convection, Rear Cover (Replaces: W11778054) |
|
- | |||||
| 31 | W11707255 | Light Assembly (Replaces: W11634772) |
|
Immediately | $ 36.68 | ||||
| 32 | W11813671 | Rear, Cover (Replaces: W11801468) |
|
- | |||||
| 33 | W10516115 | Screw |
|
$ 13.07 | |||||
| 34 | W11730217 | Cover, Conv Fan (Replaces: W11373155) |
|
- | |||||
| 35 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 45.09 | ||||
| 36 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 37 | W11747596 | Console, Front (Replaces: W11615875) |
|
- | |||||
| 38 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 24.94 | ||||
| 39 | W11520287 | Rack, Oven (Replaces: W11173792) |
|
Immediately | $ 52.19 | ||||
| 40 | W11747338 | Tube, Vent (Replaces: W11366087) |
|
- | |||||
| 41 | W11729919 | Bracket, Acu (Replaces: W11365827) |
|
$ 69.39 | |||||
| 42 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | |||||
| 43 | W11217187 | Counterweight (Replaces: W10914589) |
|
$ 30.56 | |||||
| 44 | W11135756 | Screw (Replaces: W11034869) |
|
$ 13.26 | |||||
| 45 | W11747784 | Ventilation Assembly, Duct And Frame (Replaces: W11617265) |
|
- | |||||
| 46 | W11464547 | Bracket, Front Frame |
|
$ 41.30 | |||||
| 47 | W11729933 | Tray, Insulation (Replaces: W11309796) |
|
- | |||||
| 48 | W11527111 | Fan, Convection (Replaces: W11353930) |
|
Immediately | $ 148.29 | ||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | ||||||
| W10183712 | Tray, Hidden Bake |
|
$ 219.56 | ||||||
| 4820F01559 | Insulation, Strap |
|
- | ||||||
| W11729936 | Insulation, Back (Replaces: W11407378) |
|
$ 111.12 | ||||||
| W11729932 | Insulation, Flue (Replaces: W11404469) |
|
$ 29.49 | ||||||
| W10646923 | Card, Insulator |
|
$ 17.61 | ||||||
| W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 56.39 | ||||||
| W11161831 | Insulation, Wrap (Replaces: W10774939) |
|
Immediately | $ 104.77 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
