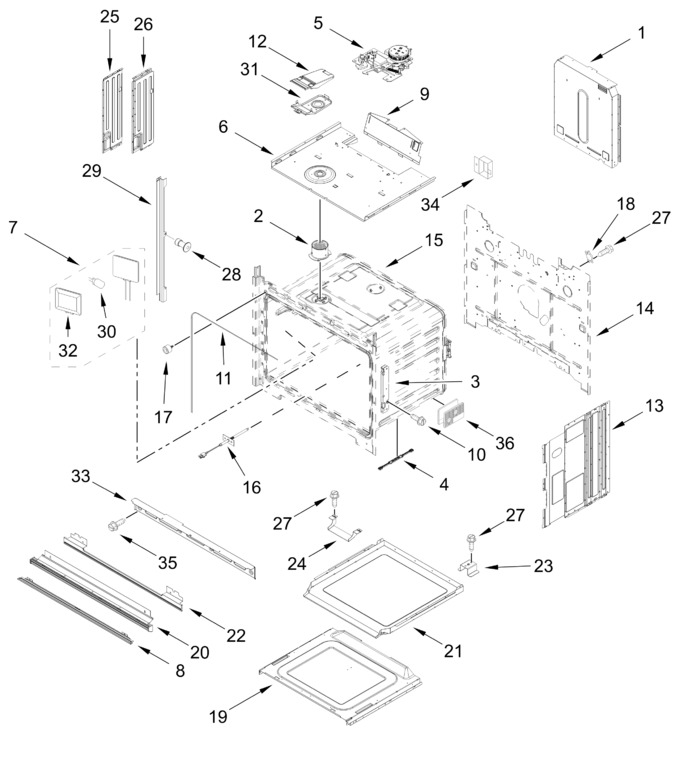

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11165250 | Duct, Upper Chassis Back |
|
$ 68.69 | |||||
| 2 | W11240525 | Tube, Vent (Replaces: W11085298) |
|
$ 22.99 | |||||
| 3 | W11712405 | Receiver, Hinge (left) (Replaces: W11239070) |
|
Immediately | $ 80.46 | ||||
| 4 | W11598152 | Spacer, Base (Replaces: W11558603) |
|
Immediately | $ 16.33 | ||||
| 5 | W11811612 | Latch, Motorized (Replaces: W11655005) |
|
Immediately | $ 62.87 | ||||
| 6 | W11244456 | Top, Chassis |
|
- | |||||
| 7 | W11292252 | Light Assembly (Replaces: W11205574) |
|
Immediately | $ 96.73 | ||||
| 8 | W11729862 | Deflector, Bottom Vent (stainless, 27 Inch) |
|
- | |||||
| 9 | W10904163 | Deflector, Blower |
|
Immediately | $ 152.81 | ||||
| 10 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 8.30 | |||||
| 11 | W11608109 | Gasket, Cavity |
|
$ 63.87 | |||||
| 12 | W11256424 | Cover, Vent Exhaust |
|
- | |||||
| 13 | W11165274 | Side, Chassis |
|
$ 72.89 | |||||
| 14 | ARICB6C68D1C295DC58D5B4CADE19064E44 | Back, Chassis (not Serviced) |
|
- | |||||
| 15 | ARIF1DCB018B2324CAD9D04009CD738647B | Liner, Oven (not Serviceable) |
|
- | |||||
| 16 | W11758691 | Probe, Sensor (Replaces: W11685697) |
|
$ 30.48 | |||||
| 17 | W11598125 | Bumper And Screw (Replaces: W11166315) |
|
$ 21.03 | |||||
| 18 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 121.07 | ||||
| 19 | W11598139 | Base, Chassis (Replaces: W11244454) |
|
- | |||||
| 20 | W11817102 | Bottom Vent Assembly (stainless) (Replaces: W11791421) |
|
- | |||||
| 21 | W11244446 | Duct, Bottom Chassis |
|
$ 63.23 | |||||
| 22 | W11714647 | Trim, Bottom Vent (black) (Replaces: W11624688) |
|
$ 80.90 | |||||
| 23 | W11135135 | Support, Air Channel |
|
$ 32.54 | |||||
| 24 | W11731183 | Spacer, Bottom Chassis Duct (Replaces: W11135125) |
|
$ 34.97 | |||||
| 25 | W11598150 | Cover, Suction (left) (Replaces: W11167419) |
|
$ 66.65 | |||||
| 26 | W11598151 | Cover, Suction (right) (Replaces: W11186675) |
|
$ 66.65 | |||||
| 27 | 7101P42660 | Screw |
|
- | |||||
| 28 | W11754870 | Rivet (black) (Replaces: W11696855) |
|
- | |||||
| 29 | W11235463 | Cover, Left Side Trim (black) |
|
$ 79.89 | |||||
| 30 | WPW10472384 | Bulb, Light (Replaces: W10472384) |
|
Immediately | $ 103.05 | ||||
| 31 | W11256423 | Base, Vent Exhaust |
|
- | |||||
| 32 | WPW10519866 | Lens, Light (Replaces: W10472386) |
|
$ 86.70 | |||||
| 33 | W11334858 | Vent, Top 27 In |
|
- | |||||
| 34 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 35 | WPY706189 | Screw (Replaces: W11249635) |
|
Immediately | $ 6.80 | ||||
| 36 | W11598170 | Foot, Base (Replaces: W11245118) |
|
$ 26.14 | |||||
| W11235462 | Cover, Right Side Trim (black) |
|
$ 79.89 | ||||||
| W11712406 | Receiver, Hinge (right) (Replaces: W11239072) |
|
$ 80.36 | ||||||
| W11688568 | Insulation, Wrap (Replaces: W11244474) |
|
- | ||||||
| W11244475 | Insulation, Back |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
