SELECT A DIAGRAM

Cabinet Parts


Freezer Door Parts


Freezer Liner And Icemaker Parts


Freezer Shelf Parts


Lower Unit And Tube Parts


Optional Parts


Upper Unit Parts

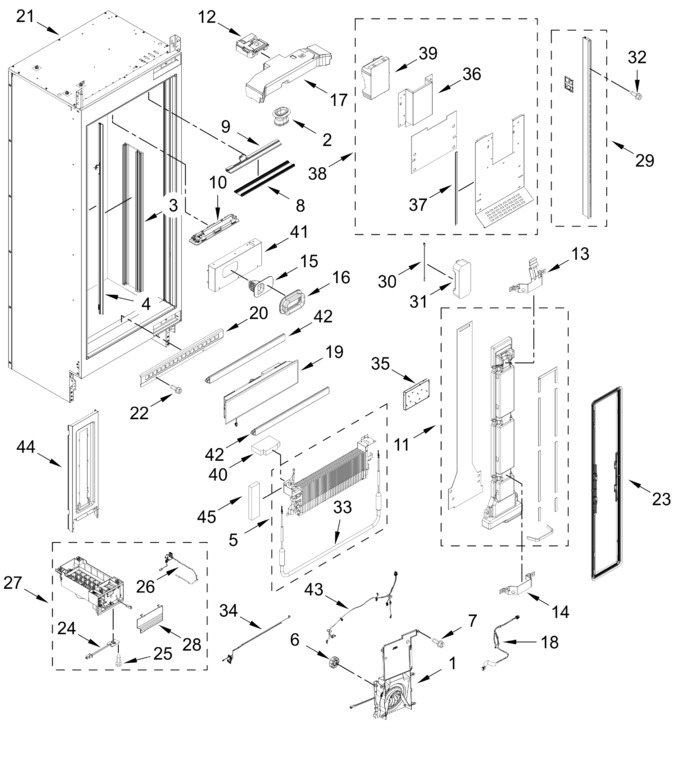

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233380		Fan Assembly, Radial   (Replaces: W10769486)			Immediately	$ 287.06
2	W10370680		Fitting, Drain				$ 34.05
3	W11235099		Cover, Led Side   (Replaces: W10816886)		Appelez-nous	-
4	W11233381		Strip Assembly, Led (left)   (Replaces: W10826246)				$ 204.09
5	W11646151		Evaporator And Heater Assembly   (Replaces: W11351159)				$ 343.55
6	W10225833		Grommet, Motor				$ 37.52
7	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
8	W11235109		Cover, Led Top   (Replaces: W10816892)		Appelez-nous	-
9	W11233383		Strip, Top Led   (Replaces: W10826249)				$ 184.40
10	W11233384		Strip Assemby, Light   (Replaces: W10914639)			Immediately	$ 185.30
11	W11235114		Gasket Assembly, Air Tower (includes Air Tower)   (Replaces: W11176554)				$ 88.14
12	W11235115		Damper Assembly, Duct (includes Heater)   (Replaces: W10872906)			Immediately	$ 197.68
13	W11036131		Bracket Assembly, Upper Air Tower (includes Rubber Rivets, Washers And Screws)		Appelez-nous	-
14	W11036132		Bracket Assembly, Lower Air Tower (includes Rubber Rivets, Washers And Screws)		Appelez-nous	-
15	W11235116		Duct, Deli   (Replaces: W10816934)				$ 93.34
16	W11235118		Gasket, Deli Duct   (Replaces: W10916552)		Appelez-nous	-
17	W11235120		Mullion, Fc Duct   (Replaces: W10863619)		Appelez-nous	-
18	W11235124		Harness, Damper   (Replaces: W10890824)		Appelez-nous	-
19	W11763848		User Interface Assembly   (Replaces: W11383511)				$ 655.30
20	W11775255		Grille, Air Return (black)   (Replaces: W11761897)		Appelez-nous	-
21	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
22	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
23	W11235123		Panel Assembly, Air Tower   (Replaces: W10816938)				$ 341.72
24	W11234552		Light, Led   (Replaces: W10903460)		Appelez-nous	-
25	W11257222		Screw   (Replaces: W11224718)		Appelez-nous	-
26	W11234553		Wire Assembly, Icemaker (includes Thermistor)   (Replaces: W10909591)				$ 129.64
27	W11646196		Icemaker Assembly   (Replaces: W11391031)			Immediately	$ 216.56
28	W11234555		Cover, Icemaker (black)   (Replaces: W10880333)				$ 21.42
29	W11234825		Ladder, Shelf (left, Includes Screw Guide)   (Replaces: W10905671)			Immediately	$ 139.46
30	W11234826		Thermistor   (Replaces: W11084854)			Immediately	$ 113.75
31	W11235125		Cover, Thermistor   (Replaces: W10912104)				$ 97.29
32	W11234828		Screw (black)   (Replaces: W11288606)		Appelez-nous	-
33	W11646154		Heater, Defrost   (Replaces: W11312289)				$ 155.50
34	W11515313		Tube Assembly, Fill (includes Heater)   (Replaces: W11365533)			Immediately	$ 270.84
35	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 13.29
36	W11299623		Cover, Evaporator Panel (u Shape)   (Replaces: W10895218)		Appelez-nous	-
37	W11299413		Gasket, Evaporator Panel   (Replaces: W10895214)		Appelez-nous	-
38	W11646156		Cover Assembly, Evaporator (includes Insulation)   (Replaces: W11441795)		Appelez-nous	-
39	W11299416		Cover, Evaporator Insulation   (Replaces: W10780861)		Appelez-nous	-
40	W11306694		Block, Air Bypass (right)   (Replaces: W11216535)		Appelez-nous	-
41	W11306289		Cover, Manifold   (Replaces: W10816946)		Appelez-nous	-
42	W11306285		Crossbar, Upper Control   (Replaces: W10816925)		Appelez-nous	-
43	W11642297		Harness, Evaporator (includes Thermistor)   (Replaces: W11574922)			Immediately	$ 105.05
44	W11234822		Wall, False   (Replaces: W10816931)		Appelez-nous	-
45	W11306293		Block Assembly, Evaporator Bypass (left, Includes Foil)   (Replaces: W10876968)		Appelez-nous	-
	W11234551		Ladder, Shelf (right, Includes Screw Guide)   (Replaces: W10905672)			Immediately	$ 139.46
	W11506619		8 Nk Ms 00			Immediately	$ 23.29
	ARI9B437A9AB478C7E2DEB1C4CC29D600EE		(capillary Tube To Evaporator)		Appelez-nous	-
	ARI01A2781A3F964B0DAEAA0FEA5F13BC43		(suction Line To Evaporator)		Appelez-nous	-
	ARI500F2B538D318C1E3390E0716ECE69B7		(also Order The Following Lokring™ Parts)		Appelez-nous	-
	W11504451		(3/1.8 Nr Ms 00)			Immediately	$ 41.63
	W11306693		Block, Air Bypass (left)   (Replaces: W11216536)		Appelez-nous	-
	W11306690		Block Assembly, Evaporator Bypass (right, Includes Foil)   (Replaces: W10876969)		Appelez-nous	-
	W11306286		Crossbar, Lower Control   (Replaces: W10887669)		Appelez-nous	-
	W11233382		Strip Assembly, Led (right)   (Replaces: W10901633)				$ 271.15

    View Diagram in Separate Window       Print Part List
