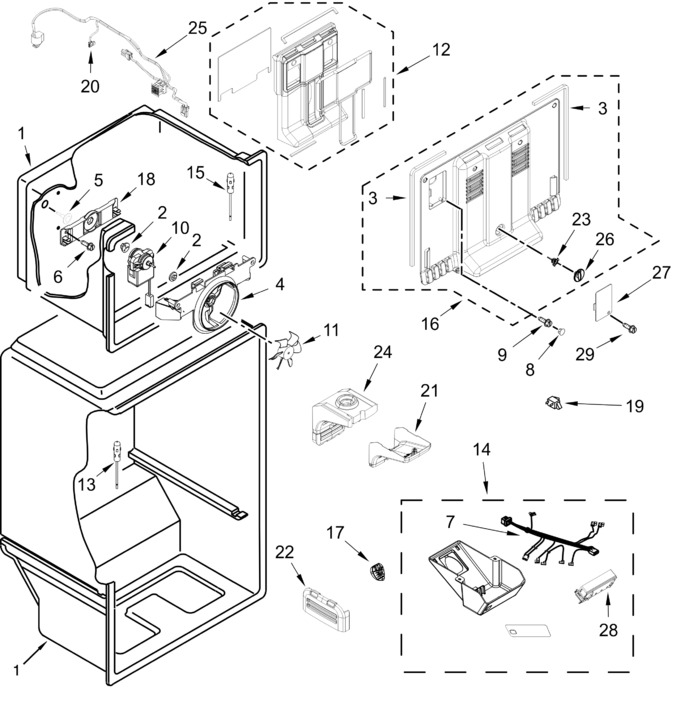

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI5B043898161B9E887C9B86F7C890BB1B | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 41.55 | ||||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces: W10709194) |
|
Immediately | $ 86.12 | ||||
| 4 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 29.22 | ||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 7.23 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 7 | W11436564 | Wire Assembly, Control Box (Replaces: W11203360) |
|
Immediately | $ 68.50 | ||||
| 8 | W10854527 | Cover, Screw (Replaces: W10487421) |
|
$ 8.89 | |||||
| 9 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.92 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 88.26 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2163777) |
|
Immediately | $ 96.85 | ||||
| 12 | W10919804 | Plenum Assembly, Evaporator (Replaces: W10676682) |
|
Immediately | $ 90.95 | ||||
| 13 | W11438736 | Thermistor, Refrigerator (Replaces: W11108173) |
|
Immediately | $ 102.74 | ||||
| 14 | W11666427 | Assembly, Box Control (Replaces: W11504958) |
|
Immediately | $ 292.91 | ||||
| 15 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 106.62 | ||||
| 16 | W11562262 | Cover, Evaporator (Replaces: W11510096) |
|
Immediately | $ 107.23 | ||||
| 17 | W11602886 | Light Module, Led (Replaces: W11549780) |
|
$ 38.37 | |||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 67.90 | ||||
| 19 | W11727836 | Switch, Light (Replaces: W11514900) |
|
Immediately | $ 22.26 | ||||
| 20 | ARI48E4C1ADBB029B08A1A93461FD040454 | Thermal Fuse (not Serviced) |
|
- | |||||
| 21 | W11256504 | Cover, Air Diffuser (Replaces: W10705209) |
|
$ 80.21 | |||||
| 22 | W10638176 | Cup, Air Diffuser |
|
$ 98.64 | |||||
| 23 | W11244470 | Baffle, Air Manual (Replaces: W10570951) |
|
$ 76.99 | |||||
| 24 | W11788430 | Air Diffuser Assembly (Replaces: W11770267) |
|
- | |||||
| 25 | W11562214 | Wire, Evaporator Fan (includes Thermal Fuse) (Replaces: W11314499) |
|
Immediately | $ 87.15 | ||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 82.67 | |||||
| 27 | W11341621 | Cover, Hole |
|
- | |||||
| 28 | W11562260 | Control, Electronic (Replaces: W11476561) |
|
Immediately | $ 297.83 | ||||
| 29 | W10720456 | Screw (white) |
|
- |
