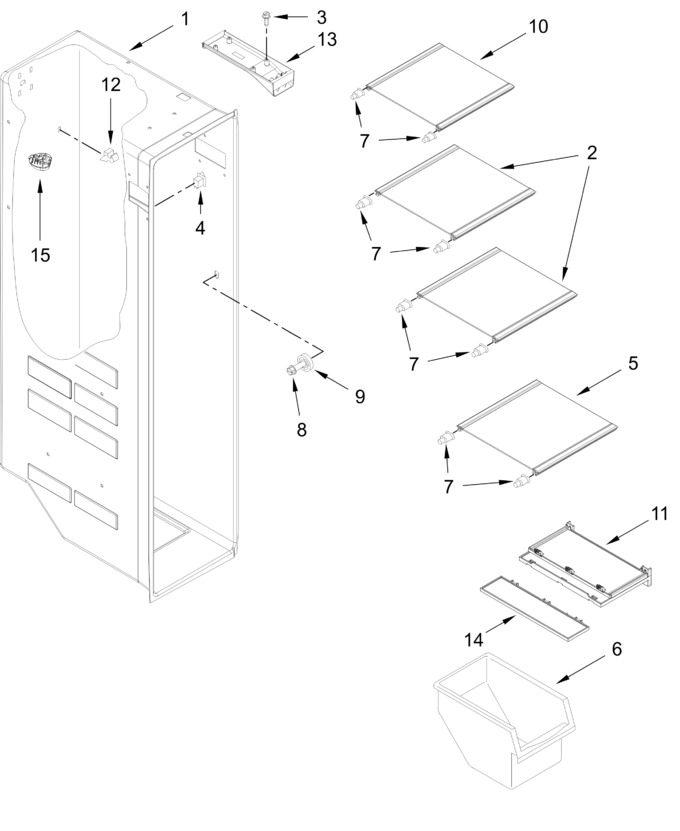

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
2	W11162572		Shelf, Glass   (Replaces: W11048567)				$ 106.82
3	WP488163		Screw   (Replaces: 488208)				$ 7.13
4	W11396033		Switch, Light   (Replaces: W10847849)			Immediately	$ 33.57
5	W11546980		Shelf, Glass (bottom)   (Replaces: W11454958)		Appelez-nous	-
6	W11577967		Bin, Freezer   (Replaces: W11427432)				$ 86.67
7	WPW10130299		Cup, Shelf   (Replaces: W10130299)			Immediately	$ 13.23
8	W10191952		Screw				$ 5.65
9	W11527119		Stud Assembly, Shelf   (Replaces: W10173127)		Appelez-nous	-
10	W11162576		Shelf, Glass (top)   (Replaces: W11048571)				$ 121.22
11	W11216934		Pizza Pocket Assembly   (Replaces: W11183656)				$ 80.50
12	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 9.85
13	W11084314		Air Duct, Freezer				$ 92.75
14	W11318231		Pivoting Shelf   (Replaces: W11108242)		Appelez-nous	-
15	W11602886		Light Module, Led   (Replaces: W11549780)				$ 38.37
