SELECT A DIAGRAM
New Model Search:

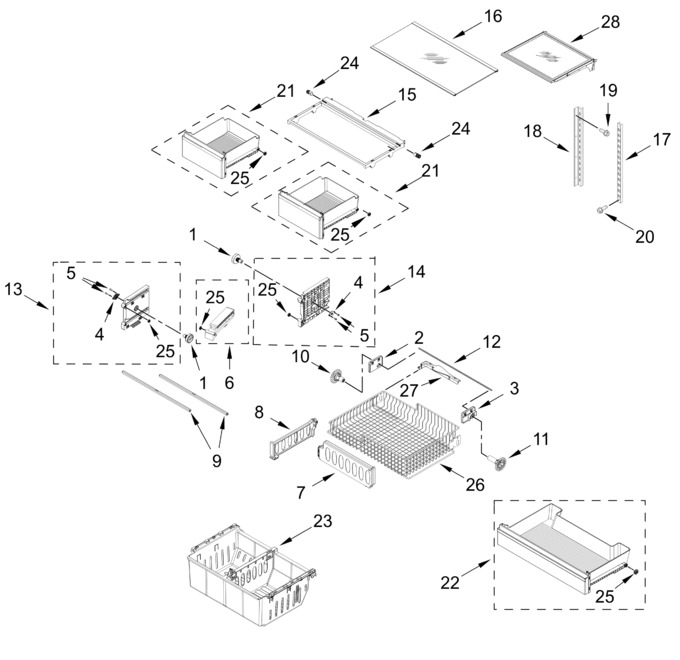

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10840922 | Knob, Side Support |
|
- | |||||
| 2 | W10348259 | Mount, Gear (left Hand) |
|
$ 89.87 | |||||
| 3 | W10348260 | Mount, Gear (right Hand) |
|
$ 89.90 | |||||
| 4 | W10840918 | Side Support Flange |
|
$ 93.47 | |||||
| 5 | W10847999 | Screw (Replaces: W10804977) |
|
$ 13.47 | |||||
| 6 | W11749331 | Support, Pan Center (Replaces: W11702378) |
|
- | |||||
| 7 | W10171558 | Divider, Basket (upper) |
|
$ 42.49 | |||||
| 8 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 29.19 | ||||
| 9 | W11748466 | Brace, Crisper Support (Replaces: W11700717) |
|
- | |||||
| 10 | WPW10474716 | Gear, Spur (left Hand) (Replaces: W10474716) |
|
Immediately | $ 32.42 | ||||
| 11 | WPW10474715 | Gear, Spur (right Hand) (Replaces: W10474715) |
|
Immediately | $ 32.76 | ||||
| 12 | W11173556 | Shaft, Rack (Replaces: W10802333) |
|
$ 32.38 | |||||
| 13 | W11749493 | Adapter Assembly, Side (left Hand) (Replaces: W11702403) |
|
- | |||||
| 14 | W11749494 | Adapter Assembly, Side (right Hand) (Replaces: W11702400) |
|
- | |||||
| 15 | W11751964 | Frame, Crisper (Replaces: W11702691) |
|
- | |||||
| 16 | W11749297 | Glass, Pan Cover (Replaces: W11694315) |
|
- | |||||
| 17 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 18 | WPW10569182 | Ladder, Side (Replaces: W10569182) |
|
$ 27.59 | |||||
| 19 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 20 | W10215666 | Screw |
|
$ 9.53 | |||||
| 21 | W11815392 | Pan Assembly, Crisper (Replaces: W11794371) |
|
- | |||||
| 22 | W11815391 | Pan Assembly, Pantry (Replaces: W11794374) |
|
- | |||||
| 23 | WPW10293682 | Bin, Lower (Replaces: W10293682) |
|
$ 181.18 | |||||
| 24 | W11748383 | Support, Crisper Frame (Replaces: W11705308) |
|
- | |||||
| 25 | W11748380 | Crisper Roller Assembly (Replaces: W11606482) |
|
- | |||||
| 26 | W11251264 | Basket, Freezer (upper) (Replaces: W11115256) |
|
$ 192.59 | |||||
| 27 | W10149389 | Lift, Bail Arm (Replaces: W10149389N) |
|
$ 92.66 | |||||
| 28 | W11749333 | Shelf, Stationary (Replaces: W11697422) |
|
$ 198.96 |
