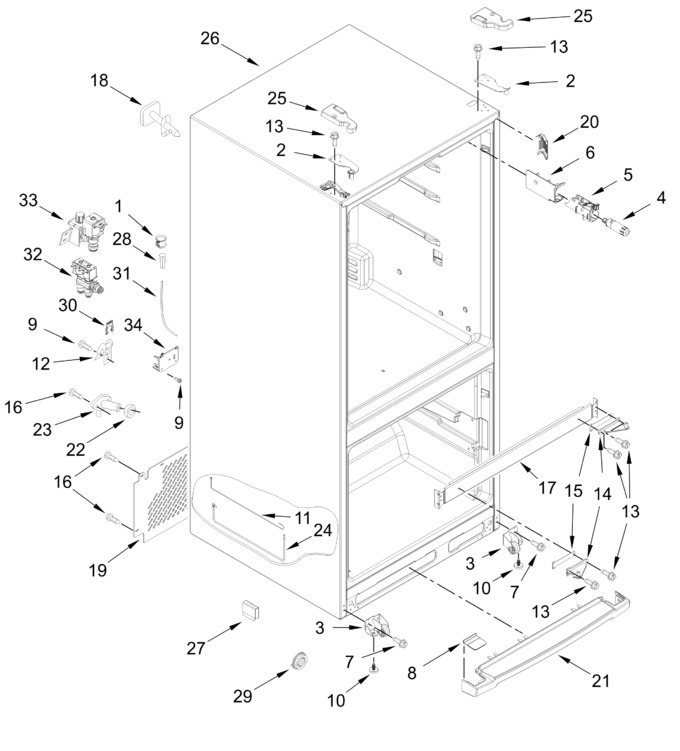

Cabinet Parts
Freezer Door Parts
Liner Parts
Optional Parts
Refrigerator Door Parts
Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 59.31 | |||||
| 2 | W10546298 | Top Hinge Assembly (left Hand) |
|
$ 63.14 | |||||
| 3 | WPW10359256 | Front Roller Assembly (left Hand) (Replaces: W10359256) |
|
Immediately | $ 46.65 | ||||
| 4 | EDR1RXD1B | Filter, Water (Replaces: W10735398) |
|
Immediately | $ 49.99 | ||||
| 5 | W10844267 | Housing, Water Filter (Replaces: W10817430) |
|
Immediately | $ 133.02 | ||||
| 6 | WPW10306392 | Cover, Water Filter (Replaces: W10306392) |
|
$ 95.45 | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | W10353930 | Cover, Toe Grille (black) |
|
$ 76.81 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 10 | WPW10141622 | Brake, Foot (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 11 | W11195038 | Tube, Filter Inlet (Replaces: W10740689) |
|
Immediately | $ 114.02 | ||||
| 12 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 19.91 | |||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 14 | W10770878 | Hinge Center (left Hand) |
|
Immediately | $ 74.07 | ||||
| 15 | WPW10450363 | Shim, Center Hinge (Replaces: W10450363) |
|
Immediately | $ 22.81 | ||||
| 16 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.45 | ||||
| 17 | ARIC034192546E98BAD7D6171A40486F101 | Rail, Center (not Serviced) |
|
- | |||||
| 18 | ARIBB7CCE306F7EDE4E2188C9275FB28EA0 | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 19 | W11700600 | Cover, Unit (Replaces: W11407731) |
|
Immediately | $ 56.53 | ||||
| 20 | W11219641 | Filler, Corner (black) (Replaces: W11189127) |
|
$ 10.69 | |||||
| 21 | WPW10353933 | Toe Grille (black) (Replaces: W10353933) |
|
$ 146.52 | |||||
| 22 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 9.39 | ||||
| 23 | W11292468 | Fitting, Water Tube (Replaces: W11249272) |
|
Immediately | $ 147.56 | ||||
| 24 | W10801011 | Tube, Filter Outlet (Replaces: W10667756) |
|
Immediately | $ 161.72 | ||||
| 25 | W10465771 | Cover, Hinge (left Hand, Black) |
|
$ 17.78 | |||||
| 26 | ARIA1BE6BF358E039F0039560B85D40D2C4 | Cabinet (not A Serviceable Part) |
|
- | |||||
| 27 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 10.38 | |||||
| 28 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.41 | |||||
| 29 | W10331226 | Drum, Toe Grille |
|
$ 42.68 | |||||
| 30 | W11676611 | Locking Ring (1/4) (Replaces: W11175632) |
|
$ 13.40 | |||||
| 31 | W11680400 | Tube, Water (Replaces: W10837812) |
|
Immediately | $ 78.78 | ||||
| 32 | WPW10279866 | Valve Assembly, Dual (Replaces: W10279866) |
|
Immediately | $ 216.36 | ||||
| 33 | WPW10238100 | Valve, Inlet (Replaces: W10498992) |
|
Immediately | $ 189.50 | ||||
| 34 | W10847867 | Bracket, Water Valve (Replaces: W10237915) |
|
$ 72.68 | |||||
| W11678575 | Locking Ring (5/16) (Replaces: W11175631) |
|
$ 13.41 | ||||||
| W11573371 | Top Hinge Assembly (right Hand) (Replaces: W10546299) |
|
Immediately | $ 22.38 | |||||
| W11417064 | Hinge, Center (right Hand) (Replaces: W10770877) |
|
Immediately | $ 54.66 | |||||
| WPW10359255 | Front Roller Assembly (right Hand) (Replaces: W10359255) |
|
Immediately | $ 90.58 | |||||
| W10465770 | Cover, Top Hinge (right Hand, Black) |
|
$ 20.49 |
