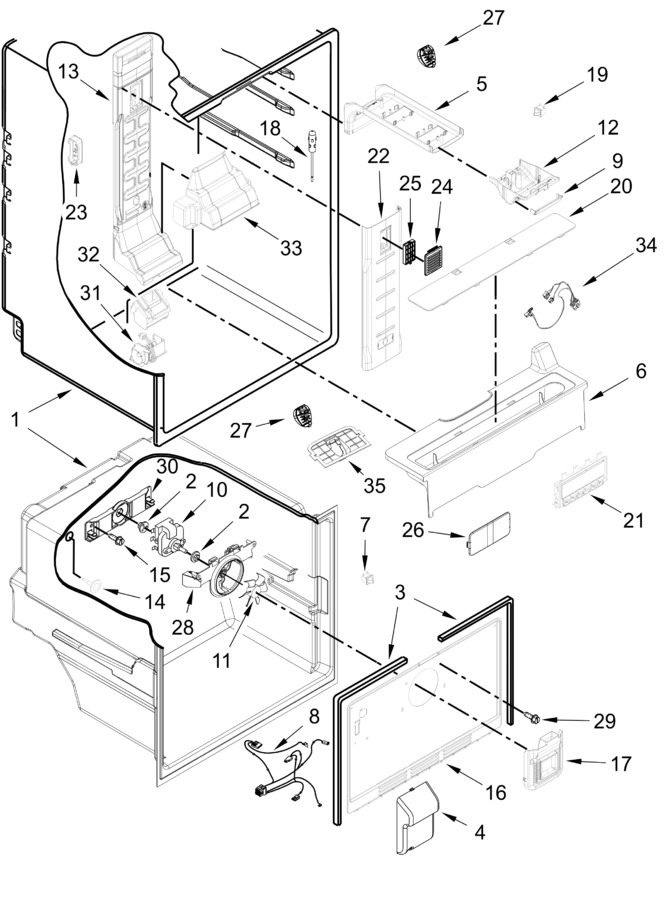

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Cabinet Parts
Freezer Door Parts
Liner Parts
Optional Parts
Refrigerator Door Parts
Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI1BA464D72C84DA7297AB1B09D16F5BB3 | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces: W10468762) |
|
Immediately | $ 95.69 | ||||
| 4 | W11562261 | Cover, Water Tube (Replaces: W11341625) |
|
$ 7.90 | |||||
| 5 | W11516524 | Housing, Light |
|
$ 132.12 | |||||
| 6 | W10798439 | Container, Water Reservoir |
|
$ 179.92 | |||||
| 7 | W11396033 | Switch, Light (Replaces: W10847849) |
|
Immediately | $ 37.30 | ||||
| 8 | W11609466 | Assembly, Freezer Wire (Replaces: W11314510) |
|
Immediately | $ 82.56 | ||||
| 9 | W10360550 | Cover, Control Housing |
|
$ 76.27 | |||||
| 10 | W11818487 | Motor, Fan (Replaces: W10464673) |
|
$ 119.39 | |||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 107.61 | ||||
| 12 | WPW10435634 | Control Housing (Replaces: W10435634) |
|
Immediately | $ 97.60 | ||||
| 13 | W11508229 | Assembly, Multiflow |
|
$ 70.20 | |||||
| 14 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 8.03 | |||||
| 15 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 16 | W10300900 | Cover, Evaporator |
|
$ 242.16 | |||||
| 17 | W11227949 | Tower, Freezer (Replaces: W10317182) |
|
$ 178.67 | |||||
| 18 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 19 | W11384469 | Switch, Rocker (Replaces: W10847853) |
|
Immediately | $ 39.09 | ||||
| 20 | W10413160 | Cover, Water Reservoir |
|
$ 113.14 | |||||
| 21 | W11655741 | Assembly, Sparsh User Interface (Replaces: W11593430) |
|
Immediately | $ 313.81 | ||||
| 22 | WPW10356895 | Tower, Multiflow Air (Replaces: W10356895) |
|
$ 161.49 | |||||
| 23 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 24 | WPW10330850 | Grille, Air Filter Bottom (Replaces: W10330850) |
|
$ 37.56 | |||||
| 25 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 26 | W10336009 | Cup, Screw |
|
$ 77.40 | |||||
| 27 | W11602886 | Light Module, Led (Replaces: W11468934) |
|
$ 42.63 | |||||
| 28 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 30 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 75.44 | ||||
| 31 | W11808478 | Damper, Electronic Control (Replaces: W10745484) |
|
Immediately | $ 139.31 | ||||
| 32 | W11133099 | Cover, Damper Housing (Replaces: W10474774) |
|
Immediately | $ 106.42 | ||||
| 33 | WPW10314204 | Housing, Damper (Replaces: W10314204) |
|
$ 102.06 | |||||
| 34 | W11618501 | Assembly, Refrigerator Light Wire (Replaces: W11432779) |
|
Immediately | $ 78.48 | ||||
| 35 | W11831709 | Housing, Light (Replaces: W11516521) |
|
- |
