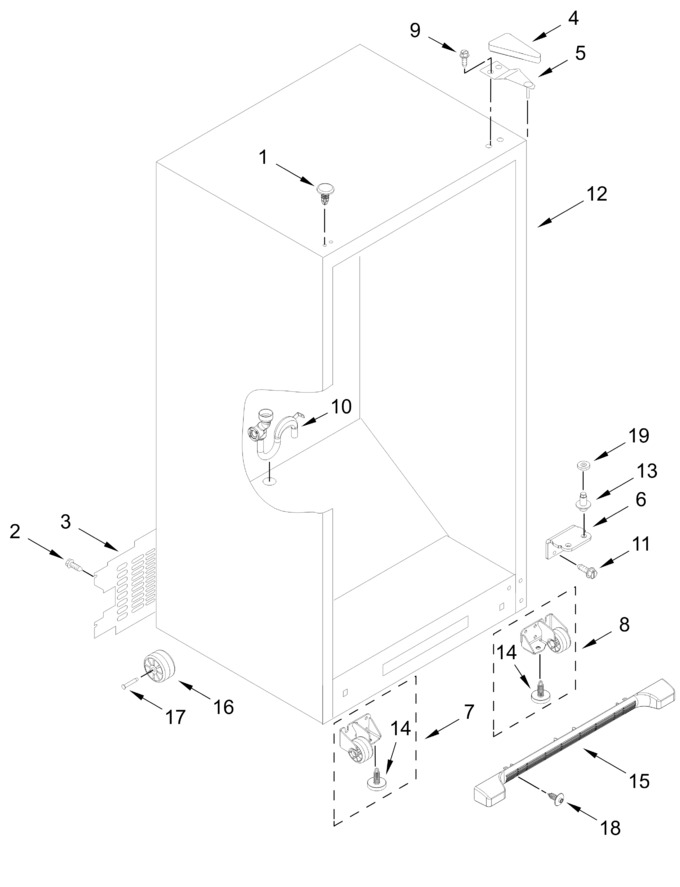

Cabinet Parts
Door Parts
Liner Parts
Optional Parts (not Included)
Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10520304 | Plug, Hole (white) (Replaces: W10520304) |
|
Immediately | $ 17.30 | ||||
| 2 | 380675105 | Screw |
|
- | |||||
| 3 | W11293957 | Cover, Unit |
|
- | |||||
| 4 | W10853622 | Cover, Hinge (grey) (Replaces: 2254510) |
|
Immediately | $ 74.21 | ||||
| 5 | W11728308 | Hinge Assembly, Top (Replaces: W11638835) |
|
$ 21.87 | |||||
| 6 | W11805068 | Hinge Plate, Bottom (Replaces: W11790781) |
|
$ 132.89 | |||||
| 7 | W11820444 | Roller Assembly (left Hand) (Replaces: W11796459) |
|
Immediately | $ 33.62 | ||||
| 8 | W11820445 | Roller Assembly (right Hand) (Replaces: W11796458) |
|
Immediately | $ 33.62 | ||||
| 9 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 26.18 | ||||
| 10 | W11673435 | Tube, Drain (Replaces: W11291514) |
|
Immediately | $ 45.88 | ||||
| 11 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.34 | ||||
| 12 | ARI8576EDE2D568F203CA1E28095884C084 | Cabinet (not A Serviceable Part) |
|
- | |||||
| 13 | W11676609 | Pin, Lower Hinge (Replaces: W10574325) |
|
$ 13.40 | |||||
| 14 | WPW10141622 | Brake, Foot (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 15 | WPW10534165 | Grille Assembly (grey, Includes Clips) (Replaces: W10534165) |
|
Immediately | $ 62.66 | ||||
| 16 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 17 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 18 | W11582178 | Screw (grey) (Replaces: W11546560) |
|
$ 13.25 | |||||
| 19 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 9.67 |
