SELECT A DIAGRAM

Cabinet Parts


Door Parts


Liner Parts


Optional Parts


Shelf Parts


Unit Parts

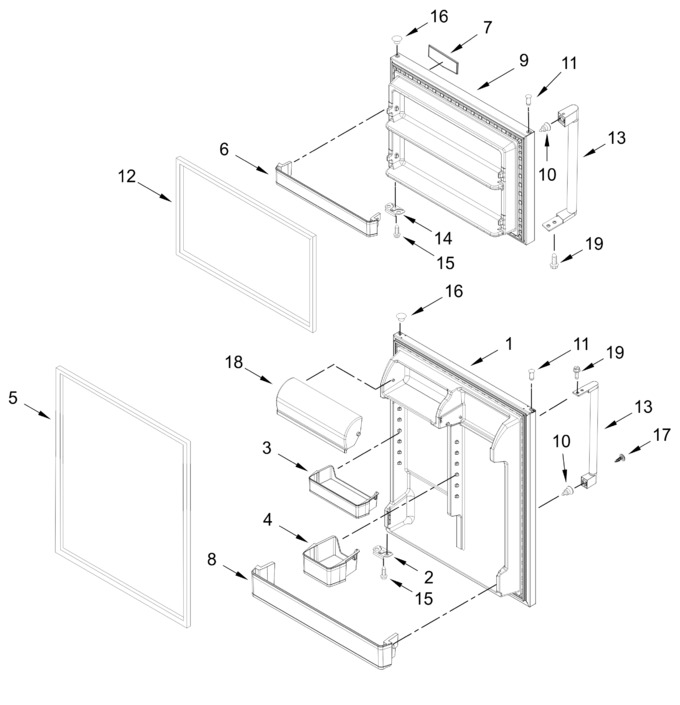

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11778554		Refrigerator Door, Stainless (includes Door Gasket)				$ 89.63
2	W11402852		Bracket, Door Stop   (Replaces: W10638692)				$ 68.81
3	W11824288		Bin, Rc Door (large)   (Replaces: W11807536)				$ 56.49
4	W11824289		Bin, Rc Door (short)   (Replaces: W11807539)		Appelez-nous	-
5	W11784834		Gasket, Door (grey)   (Replaces: W11030683)			Immediately	$ 223.35
6	W11807630		Freezer Door Bin   (Replaces: W11750547)		Appelez-nous	-
7	W11648754		Badge   (Replaces: W11628148)			Immediately	$ 42.40
8	W11807633		Refrigerator Door Bin (bottom)   (Replaces: W11750538)				$ 56.49
9	W11778552		Freezer Door, Stainless (includes Door Gasket)				$ 143.88
10	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 9.66
11	W11676573		Thimble, Top (grey)   (Replaces: W10492022)				$ 14.81
12	W11574983		Gasket, Door (grey)   (Replaces: W11030682)				$ 92.37
13	W11824285		Handle, Door (stainless)   (Replaces: W11751027)			Immediately	$ 120.93
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
15	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
16	WP2254517		Plug, Hole (grey)   (Replaces: 2254517)			Immediately	$ 24.34
17	W10830982		Plug, Hole (grey)   (Replaces: W10663739)			Immediately	$ 19.54
18	W11675283		Compartment, Door   (Replaces: W10601425)				$ 34.34
19	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55

    View Diagram in Separate Window       Print Part List
