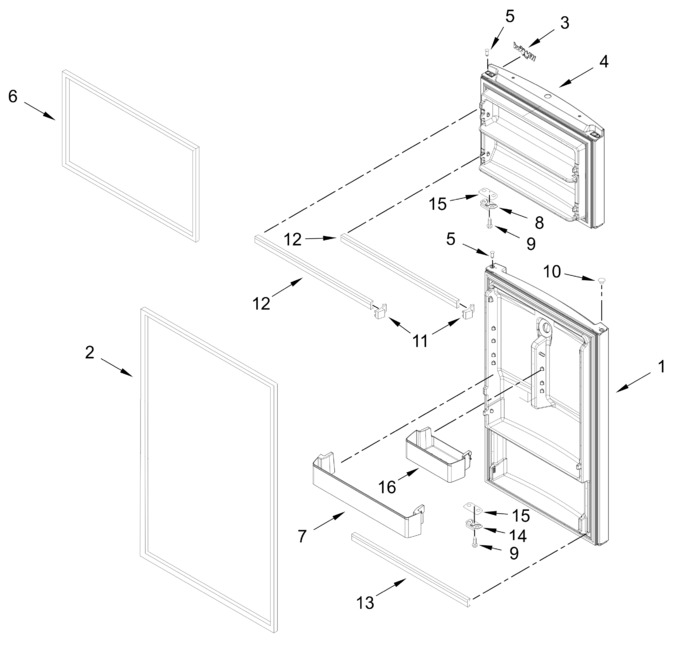

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Cabinet Parts
Door Parts
Liner Parts
Optional Parts
Shelf Parts
Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11645695 | Refrigerator Door Assembly (stainless, Includes Door Gasket) (Replaces: W11634842) |
|
$ 484.46 | |||||
| 2 | W10244874 | Gasket, Rc Door (grey) |
|
$ 209.92 | |||||
| 3 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 4 | LW10803960 | Freezer Door Assembly (stainless, Includes Door Gasket) (Replaces: W10803960) |
|
$ 315.32 | |||||
| 5 | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 11.44 | |||||
| 6 | W11661186 | Gasket, Fc Door (grey) (Replaces: W10843448) |
|
Immediately | $ 207.05 | ||||
| 7 | W11230940 | Trivet (Replaces: W10805892) |
|
$ 88.81 | |||||
| 8 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 9 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 10 | WP2212651 | Plug, Hinge Hole (black) (Replaces: 2212651) |
|
$ 21.79 | |||||
| 11 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 12 | W10245587 | Trim, Door Shelf |
|
- | |||||
| 13 | W11669624 | Trim, Door Shelf (Replaces: W10802128) |
|
$ 107.10 | |||||
| 14 | W10492012 | Bracket, Door Stop |
|
$ 15.17 | |||||
| 15 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.80 | ||||
| 16 | W11190821 | Bin, Movable (Replaces: W10805890) |
|
$ 144.92 | |||||
| WP2212648 | Plug, Hinge Hole (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 |
