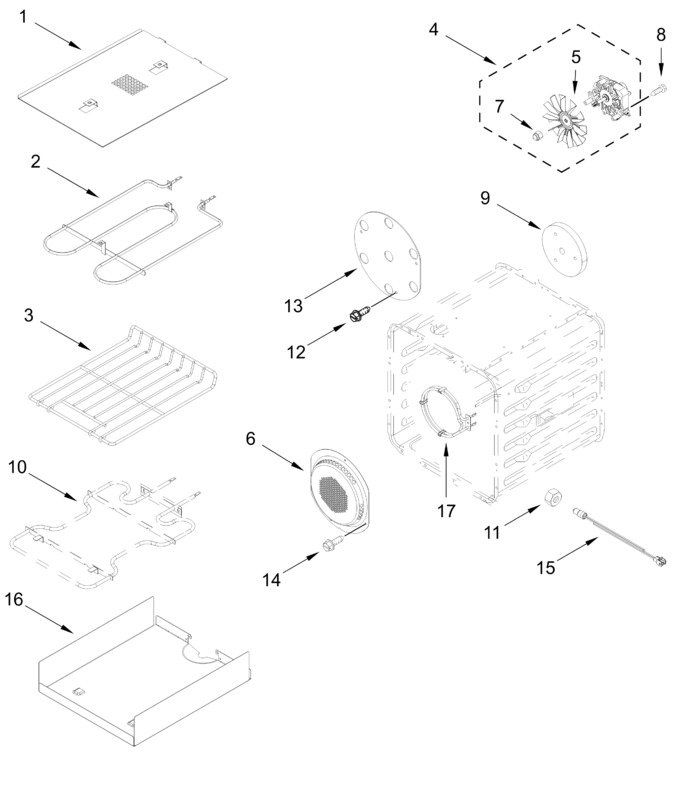

Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10160855		Shield, Element Broil		Appelez-nous	-
2	W10116010		Element, Broil				$ 118.11
3	W10570879		Rack, Oven (18 In)				$ 117.43
4	W10860984		Fan, Convection   (Replaces: W10722667)			Immediately	$ 191.93
5	W10819914		Blade, Fan   (Replaces: W10631503)			Immediately	$ 79.80
6	W11211948		Cover, Fan		Appelez-nous	-
7	W10794042		Nut, Acorn (left Hand Thread)   (Replaces: W10631504)				$ 11.83
8	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
9	W11688507		Insulation, Convection Cover   (Replaces: W10282821)			Immediately	$ 24.39
10	ARIF93179EB3F6CD1D1805E65CA61F82AAB		Element, Hidden Bake (not Serviced)		Appelez-nous	-
11	WP9755546		Nut, Hidden   (Replaces: 9755546)				$ 6.57
12	W10850807		Screw   (Replaces: W10720084)				$ 6.99
13	W10261523		Plate, Fan				$ 70.07
14	W10739592		Screw		Appelez-nous	-
15	W11766162		Jack, Meat Probe   (Replaces: W11734534)		Appelez-nous	-
16	W11320538		Tray, Hidden Bake   (Replaces: W11110223)		Appelez-nous	-
17	W11643125		Element, Convection Steam   (Replaces: 9762242)			Immediately	$ 114.16

    View Diagram in Separate Window       Print Part List
