New Model Search:

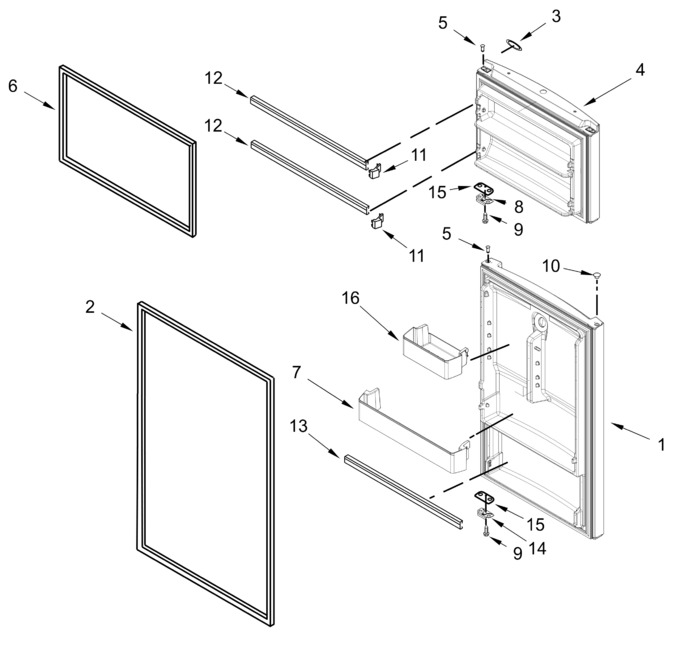

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10852095 | Refrigerator Door (white, Includes Illustration 2) (Replaces: W10852095) |
|
$ 716.13 | |||||
| 2 | WP2319264W | Gasket, Door (white) (Replaces: 2264727) |
|
Immediately | $ 329.08 | ||||
| 3 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 4 | LW10852088 | Freezer Door Assembly (white, Includes Door Gasket) (Replaces: W10852088) |
|
$ 762.67 | |||||
| 5 | W11759045 | Thimble, Top (white) (Replaces: W10492018) |
|
Immediately | $ 12.34 | ||||
| 6 | WP2319263W | Gasket, Fc Door (white) (Replaces: W10840863) |
|
Immediately | $ 265.20 | ||||
| 7 | W11230940 | Trivet (Replaces: W10805892) |
|
$ 98.68 | |||||
| 8 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 9 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 10 | WP2212648 | Plug, Hinge Hole (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 11 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 12 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 120.57 | ||||
| 13 | WPW10234241 | Trim, Door Shelf (Replaces: W10234241) |
|
Immediately | $ 122.35 | ||||
| 14 | W10492012 | Bracket, Door Stop |
|
$ 16.85 | |||||
| 15 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 16 | W11190821 | Bin, Movable (Replaces: W10805890) |
|
$ 161.02 |
