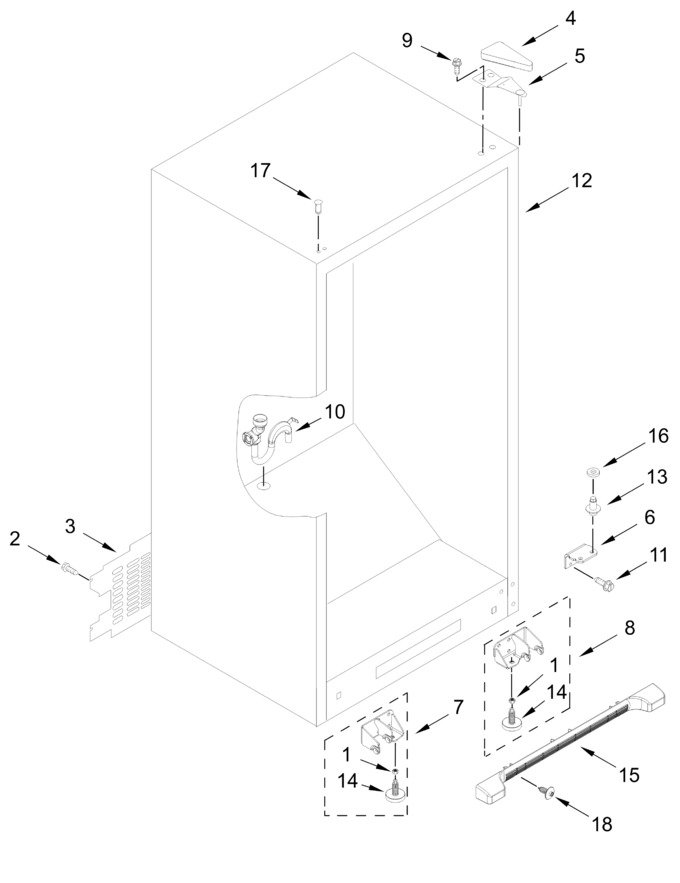

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3359452 | Nut, Hex (Replaces: 3359452) |
|
Immediately | $ 6.80 | ||||
| 2 | 380675105 | Screw |
|
- | |||||
| 3 | W11311062 | Cover, Unit |
|
$ 105.40 | |||||
| 4 | WP2213360 | Cover, Hinge (white) (Replaces: 2213360) |
|
$ 18.17 | |||||
| 5 | W11728308 | Hinge Assembly, Top (Replaces: W11638835) |
|
$ 21.87 | |||||
| 6 | W11805068 | Hinge Plate, Bottom (Replaces: W11790781) |
|
$ 132.89 | |||||
| 7 | W11824302 | Brake Foot Assembly (left Hand) (Replaces: W11803501) |
|
- | |||||
| 8 | W11824303 | Brake Foot Assembly (right Hand) (Replaces: W11803500) |
|
- | |||||
| 9 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 26.18 | ||||
| 10 | W11673435 | Tube, Drain (Replaces: W11291514) |
|
Immediately | $ 45.88 | ||||
| 11 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.34 | ||||
| 12 | ARI8576EDE2D568F203CA1E28095884C084 | Cabinet (not A Serviceable Part) |
|
- | |||||
| 13 | W11676609 | Pin, Lower Hinge (Replaces: W10574325) |
|
$ 13.40 | |||||
| 14 | WPW10141622 | Brake, Foot (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 15 | WPW10534166 | Grille, Toe (white, Includes Clips) (Replaces: W10534166) |
|
Immediately | $ 85.37 | ||||
| 16 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 17 | WPW10520304 | Plug, Hole (white) (Replaces: W10520304) |
|
Immediately | $ 17.30 | ||||
| 18 | WPW10142283 | Screw (Replaces: W11546550) |
|
$ 9.30 |
