Control Panel And Inner Door Parts


Door And Panel Parts


Lower Rack Parts


Optional Parts (not Included)


Pump, Washarm And Motor Parts

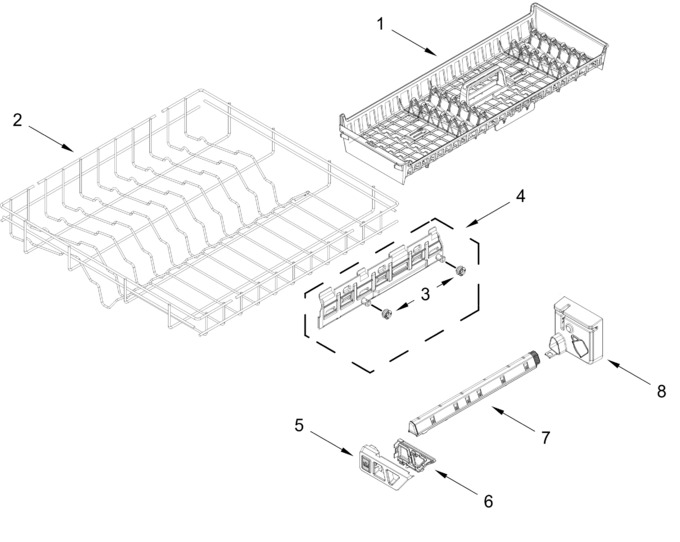

Third Level Rack And Track Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11820595		Silverware Tray   (Replaces: W11783632)				$ 61.31
2	W11836631		Rack, Third Level   (Replaces: W11758646)		Appelez-nous	-
3	W11568789		Wheel   (Replaces: W11048219)			Immediately	$ 15.82
4	W11662340		Mount Assembly, Third Level (left)   (Replaces: W11231350)				$ 22.26
5	W11175556		Manifold, Front		Appelez-nous	-
6	W11324430		Manifold, Rear		Appelez-nous	-
7	W11175552		Tube, Wash				$ 111.11
8	W11324432		Manifold Assembly		Appelez-nous	-
	W11675848		Mount Assembly, Third Level (right)   (Replaces: W11231352)				$ 22.27
