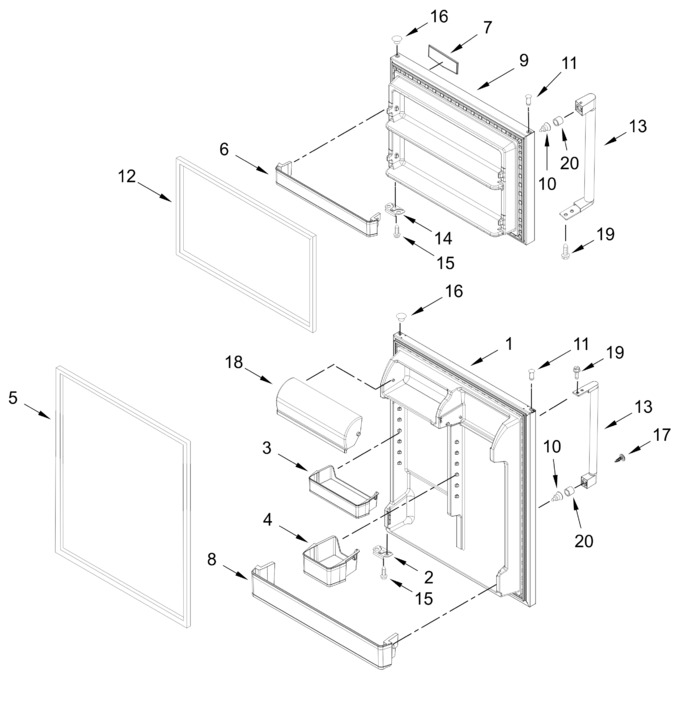

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11778523		Refrigerator Door, White (includes Door Gasket)		Appelez-nous	-
2	W11402852		Bracket, Door Stop   (Replaces: W10638692)				$ 61.93
3	W11824288		Bin, Rc Door (large)   (Replaces: W11807536)				$ 50.84
4	W11824289		Bin, Rc Door (short)   (Replaces: W11807539)		Appelez-nous	-
5	W10838574		Gasket, Rc Door (white)   (Replaces: W10638676)			Immediately	$ 96.40
6	W11807630		Freezer Door Bin   (Replaces: W11750547)		Appelez-nous	-
7	W11648754		Badge   (Replaces: W11628148)			Immediately	$ 38.16
8	W11807633		Refrigerator Door Bin (bottom)   (Replaces: W11750538)				$ 50.84
9	W11778522		Freezer Door, White (includes Door Gasket)		Appelez-nous	-
10	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.69
11	W11759045		Thimble, Top (white)   (Replaces: W10492018)			Immediately	$ 11.11
12	W10861499		Gasket, Fc Door (white)   (Replaces: W10638675)			Immediately	$ 88.56
13	W11824285		Handle, Door (stainless)   (Replaces: W11751027)			Immediately	$ 108.84
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
15	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
16	WP2212648		Plug, Hinge Hole (white)   (Replaces: 2212648)			Immediately	$ 7.37
17	W10830984		Hole Plug, Handle (white)   (Replaces: W10663736)				$ 7.54
18	W11675283		Compartment, Door   (Replaces: W10601425)				$ 30.91
19	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
20	WPW10511911		Bushing, Handle   (Replaces: W10511911)				$ 14.50
