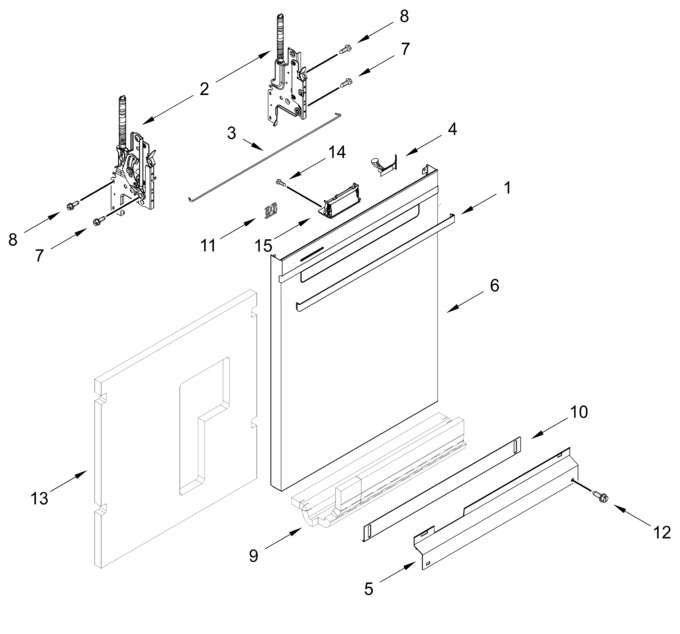

Control Panel And Inner Door Parts


Door And Panel Parts


Lower Rack Parts


Optional Parts (not Included)


Pump, Washarm And Motor Parts


Third Level Rack And Track Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11087930		Trim, Handle   (Replaces: W10865090)				$ 134.16
2	W11766666		Arm, Hinge (left)   (Replaces: W11721083)			Immediately	$ 59.16
3	W11377160		Cross Brace, Door				$ 33.36
4	W11102920		Light Pipe				$ 68.17
5	W11545318		Access Panel (black)   (Replaces: W11108979)			Immediately	$ 27.90
6	W11461682		Front Panel (stainless, Includes Barrel Nut, Handle Trim, Light Pipe And Pocket Handle)   (Replaces: W11233307)			Immediately	$ 455.28
7	W11676450		Screw   (Replaces: 3400000)				$ 14.76
8	WPW10309090		Screw   (Replaces: W11364953)			Immediately	$ 76.86
9	W11573704		Insulation, Single Layer   (Replaces: W11038694)			Immediately	$ 29.98
10	W11579528		Toe Panel (black)   (Replaces: W11467733)			Immediately	$ 32.90
11	W10692757		Barrel Nut, Front Panel				$ 16.01
12	W11551775		Screw (black)   (Replaces: W11438978)			Immediately	$ 17.03
13	W11778318		Insulation, Front Panel   (Replaces: W10919861)				$ 23.86
14	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
15	W10896302		Handle, Pocket (gray)		Appelez-nous	-
	W11766665		Arm, Hinge (right)   (Replaces: W11721082)			Immediately	$ 59.16

    View Diagram in Separate Window       Print Part List
