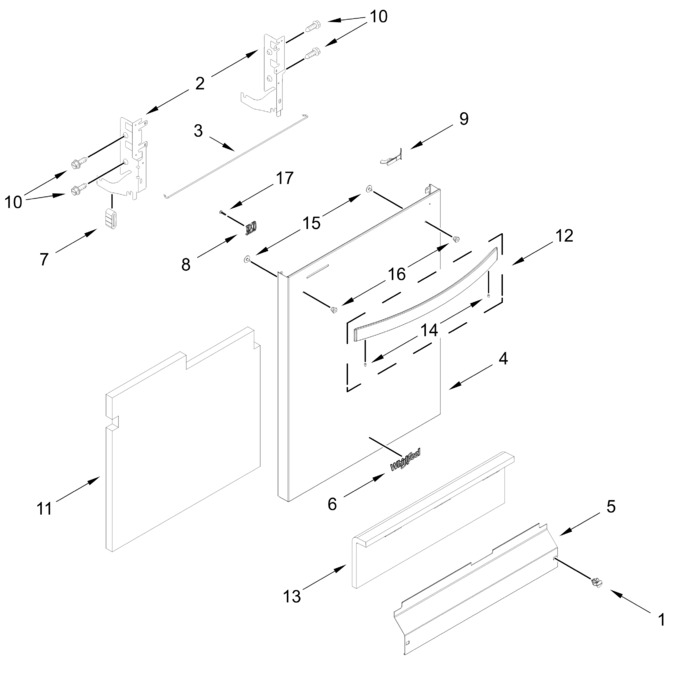

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 27.35
2	W11806565		Arm, Hinge (left)   (Replaces: W11687975)			Immediately	$ 128.15
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 29.59
4	W11702834		Panel, Front (stainless, Includes Badge, Barrel Nut, Light Pipe, Screw & Mounting Stud)   (Replaces: W11528197)			Immediately	$ 500.59
5	W11763736		Access Panel (black)   (Replaces: W11674252)			Immediately	$ 38.03
6	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
7	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 6.01
8	W10692757		Barrel Nut, Front Panel				$ 14.41
9	W11504190		Light, Pipe		Appelez-nous	-
10	W11755068		Screw   (Replaces: W11714324)		Appelez-nous	-
11	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 58.73
12	W11685315		Handle (stainless)   (Replaces: W11554913)			Immediately	$ 92.53
13	W10831329		Insulation, Toe Panel   (Replaces: W10519755)			Immediately	$ 38.97
14	W10907991		Screw, Set   (Replaces: W10693137)				$ 6.80
15	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 6.80
16	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 7.98
17	WPW10213953		Screw   (Replaces: W10711884)			Immediately	$ 6.80
	W11806608		Arm, Hinge (right)   (Replaces: W11687976)			Immediately	$ 128.02

    View Diagram in Separate Window       Print Part List
