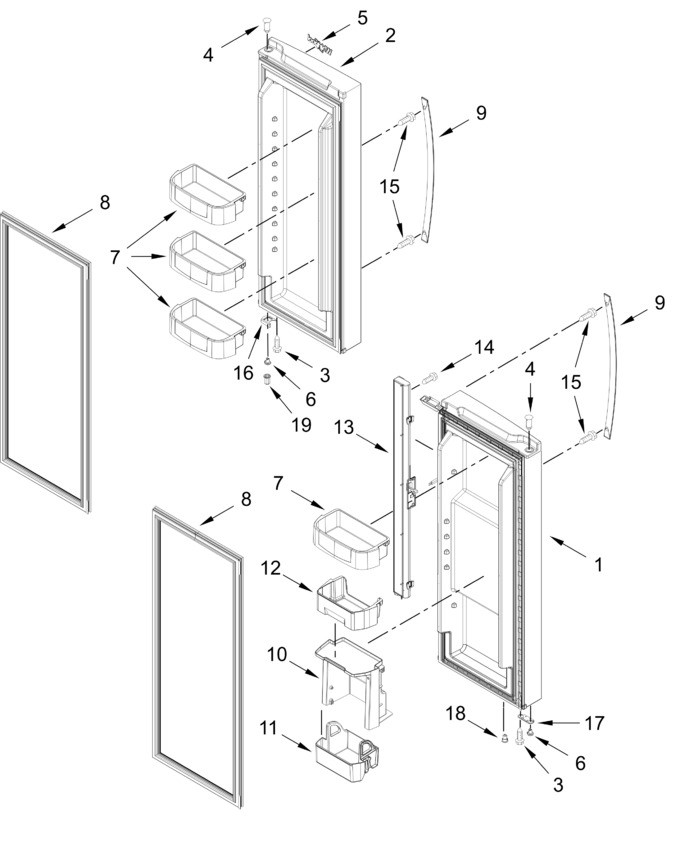

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11654421		Door Assembly (black, Left Hand, Includes Door Gasket)   (Replaces: W11525211)				$ 617.64
2	LW10721541		Door Assembly (black, Right Hand, Includes Door Gasket)   (Replaces: W10721541)				$ 874.89
3	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
4	W11544568		Thimble, Top   (Replaces: W10366270)			Immediately	$ 13.95
5	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
6	WPW10470155		Closure, Door   (Replaces: W10470155)			Immediately	$ 7.55
7	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 77.70
8	W10460610		Gasket, Door (black)   (Replaces: W10413465)				$ 279.53
9	W11123097		Handle, Door (black)   (Replaces: W11101974)				$ 190.44
10	WPW10317224		Compartment, Utility   (Replaces: W10317224)				$ 103.80
11	W11106787		Caddy, Condiment   (Replaces: W10462299)			Immediately	$ 106.98
12	WPW10326335		Bin, Shallow   (Replaces: W10326335)			Immediately	$ 64.79
13	W11692845		Flipper Mullion Assembly (black)   (Replaces: W10624448)				$ 241.66
14	W10854958		Screw   (Replaces: 12990302)				$ 7.90
15	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
16	WPW10397055		Bracket, Door Stop   (Replaces: W10397055)			Immediately	$ 36.94
17	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
18	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 12.71
19	WP67002731		Bushing, Door (black)   (Replaces: 12028601B)			Immediately	$ 8.24
	ARIF959192793ABCBAD1A31237D162F5226		(right Hand)		Appelez-nous	-
	ARIFE26C32C0D260E4F0CD7D243D4292330		(left Hand)		Appelez-nous	-
