SELECT A DIAGRAM

Cabinet Parts


Door Parts


Unit Parts

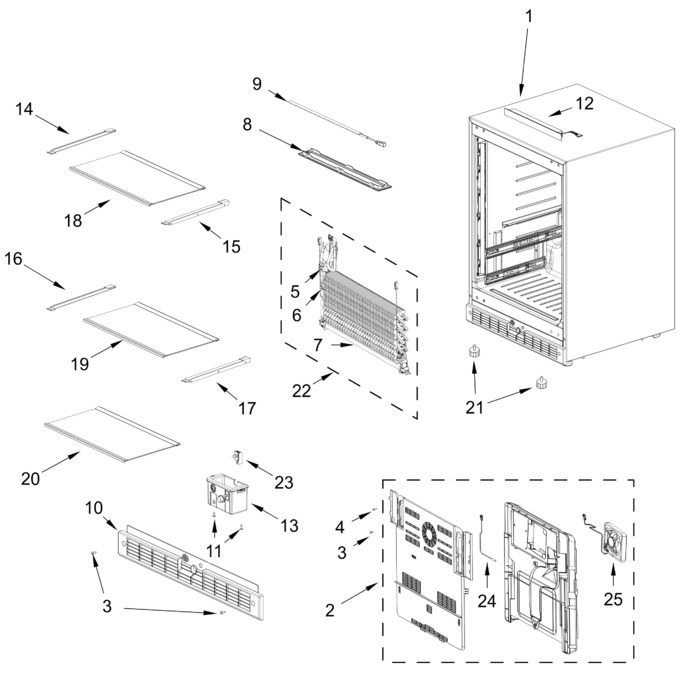

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI1D3F6AB8AF557BDC6BAF811BFA727375		Cabinet (not A Service Part)		Appelez-nous	-
2	W11774699		Assembly, Evaporator Cover   (Replaces: W11740822)				$ 243.24
3	W11675284		Screw   (Replaces: W11371095)				$ 14.35
4	W11375760		Screw		Appelez-nous	-
5	W11266076		Sensor, Defrost   (Replaces: W11263884)				$ 109.50
6	W11359415		Fuse, Temperature				$ 98.35
7	W11359416		Defrost Holder And Heater		Appelez-nous	-
8	W11312450		Cover, Led		Appelez-nous	-
9	W11497301		Assembly, Led   (Replaces: W11492253)				$ 73.85
10	W11360218		Plate, Kick				$ 109.15
11	W11371097		Screw		Appelez-nous	-
12	W11823921		Assembly, Control   (Replaces: W11822418)		Appelez-nous	-
13	W11359433		Assembly, Switch Box				$ 137.60
14	W10797332		Support, Shelf (left Hand)				$ 27.14
15	W10797333		Support, Shelf (right Hand)				$ 27.14
16	W10797336		Support, Shelf (left Hand)		Appelez-nous	-
17	W10797337		Support, Shelf (right Hand)		Appelez-nous	-
18	W11548215		Shelf, Glass (middle)   (Replaces: W11546124)		Appelez-nous	-
19	W11548216		Shelf, Glass (bottom)   (Replaces: W11546125)		Appelez-nous	-
20	W11547158		Shelf, Glass (top)   (Replaces: W11538045)				$ 97.02
21	W11106296		Leg, Leveling   (Replaces: 4344763)				$ 17.13
22	W11800042		Evaporator And Heater Assembly   (Replaces: W11798698)				$ 325.88
23	W11266082		Switch, Door   (Replaces: W11265587)			Immediately	$ 36.73
24	W11747626		Sensor Pcc (upper)   (Replaces: W11728555)		Appelez-nous	-
25	W11831711		Fan Motor Assembly, Evaporator   (Replaces: W11825844)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11822399		Bracket, Kickplate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
