Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11334152 Liner, Door   (Replaces: W11036772) Special Order $ 375.81

2 W11688331 Insulation, Door   (Replaces: W10884823) Special Order $ 41.75

3 W11334153 Glass, Inner   (Replaces: W11036791) Special Order $ 118.31

4 W11194820 Retainer, Glass Special Order $ 171.45

5 W11822565 Hinge, Door (dual)   (Replaces: W11807687) Appelez-nous -
6 W11822566 Hinge, Door (dampened)   (Replaces: W11807689) Appelez-nous -
7 W11194814 Frame, Glass In-Stock Immediately $ 314.85

8 W11712404 Screw   (Replaces: W10898280) In-Stock Immediately $ 13.29

9 W11193480 Screw   (Replaces: W10607120) Special Order $ 13.25

10 W11751894 Outer Door Assembly (juniper) Appelez-nous -
11 WPW10132940 Screw   (Replaces: 3196184) Special Order $ 9.11

12 W11317513 Bracket, Handle   (Replaces: W11197830) Special Order $ 70.93

13 W11773159 Stud   (Replaces: W11687274) Special Order $ 26.87

14 W11820182 Handle Assembly (juniper)   (Replaces: W11732560) Appelez-nous -
15 W10162096 Screw Special Order $ 19.71


    View Diagram in Separate Window     Print Icon   Print Part List

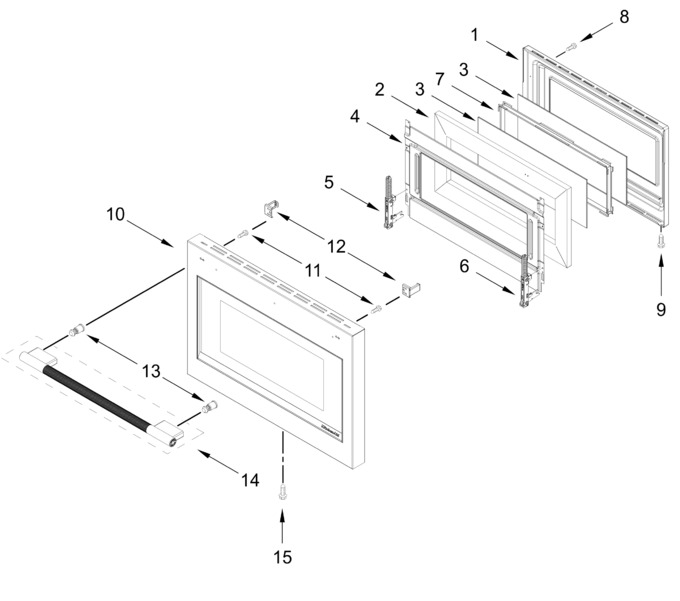

Diagram for KFDS936SJP00
