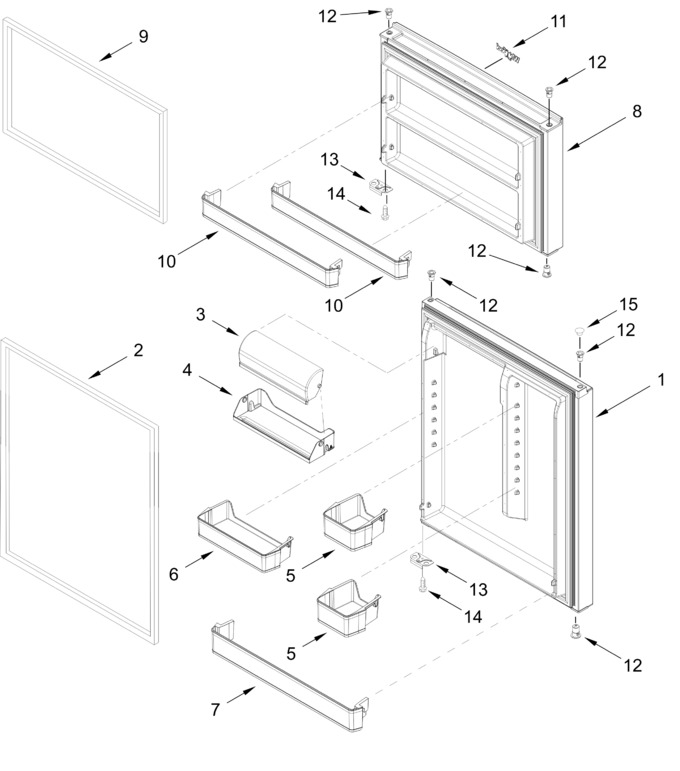

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826647		Door, Refrigerator (black, Includes Door Gasket)   (Replaces: W11776730)		Appelez-nous	-
2	2177311		Gasket, Door (black)   (Replaces: W11406604)				$ 330.95
3	W11675283		Compartment, Door   (Replaces: W10601425)				$ 34.34
4	W11829865		Bin, Rc Door Daily Base   (Replaces: W11700174)		Appelez-nous	-
5	W11829842		Bin, Rc Door (short)   (Replaces: W11757100)		Appelez-nous	-
6	W11807631		Bin, Rc Door (large)   (Replaces: W11750600)				$ 56.49
7	W11829843		Bin, Rc Door (xl)   (Replaces: W11757085)		Appelez-nous	-
8	W11826364		Door, Freezer (black, Includes Door Gasket)   (Replaces: W11776715)		Appelez-nous	-
9	2177310		Gasket, Door (black)   (Replaces: W11406601)				$ 335.31
10	W11829864		Bin, Fc Door (xl)   (Replaces: W11757084)		Appelez-nous	-
11	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
12	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 12.71
13	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
14	W10276642		Screw   (Replaces: 8533904)				$ 6.41
15	WP2212651		Plug, Hinge Hole (black)   (Replaces: 2212651)				$ 24.21
