SELECT A DIAGRAM

Cabinet Parts


Door Parts


Liner Parts


Optional Parts


Shelf Parts


Unit Parts

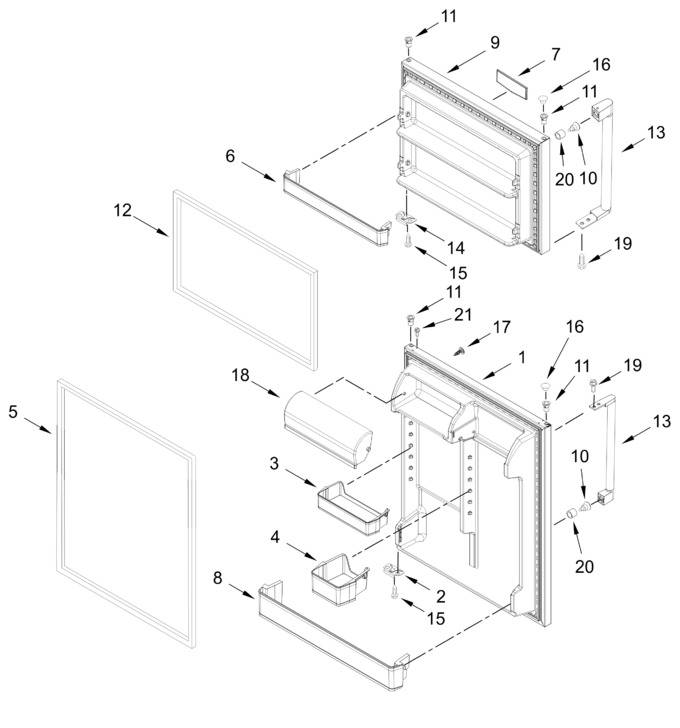

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11778550		Refrigerator Door, Black (includes Door Gasket)				$ 215.95
2	W11402852		Bracket, Door Stop   (Replaces: W10638692)				$ 68.81
3	W11824288		Bin, Rc Door (large)   (Replaces: W11807536)				$ 56.49
4	W11824289		Bin, Rc Door (short)   (Replaces: W11807539)		Appelez-nous	-
5	W11240749		Gasket, Rc Door (black)   (Replaces: W10678768)			Immediately	$ 300.69
6	W11807630		Freezer Door Bin   (Replaces: W11750547)		Appelez-nous	-
7	W11648754		Badge   (Replaces: W11628148)			Immediately	$ 42.40
8	W11807633		Refrigerator Door Bin (bottom)   (Replaces: W11750538)				$ 56.49
9	W11778549		Freezer Door, Black (includes Door Gasket)				$ 134.22
10	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 9.66
11	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 12.71
12	W11229610		Gasket, Fc Door (black)   (Replaces: W10667843)			Immediately	$ 300.69
13	W11824285		Handle, Door (stainless)   (Replaces: W11751027)			Immediately	$ 120.93
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
15	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
16	WP2212651		Plug, Hinge Hole (black)   (Replaces: 2212651)				$ 24.21
17	W10830983		Hole, Plug (black)   (Replaces: W10663737)				$ 19.54
18	W11675283		Compartment, Door   (Replaces: W10601425)				$ 34.34
19	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
20	WPW10511911		Bushing, Handle   (Replaces: W10511911)				$ 16.11
21	W10276642		Screw   (Replaces: 8533904)				$ 6.41

    View Diagram in Separate Window       Print Part List
