SELECT A DIAGRAM

Cabinet Parts


Icemaker Parts


Lower Drawer Parts


Unit Parts


Upper Drawer Parts

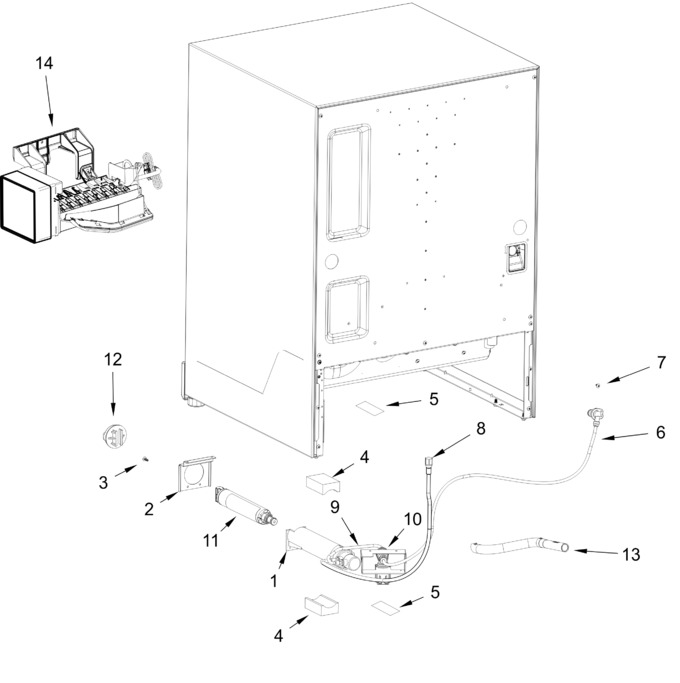

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11594479		Housing, Filter   (Replaces: W11580299)			Immediately	$ 230.23
2	W11580300		Bracket, Filter		Appelez-nous	-
3	W10281556		Screw, Support		Appelez-nous	-
4	W11580302		Block, Filter		Appelez-nous	-
5	W10281589		Tape, Filter		Appelez-nous	-
6	W11580303		Tube, Water		Appelez-nous	-
7	W11371097		Screw		Appelez-nous	-
8	W11632305		Tube, Inlet   (Replaces: W11580305)				$ 127.79
9	W11632308		Tube, Water   (Replaces: W11580307)				$ 83.18
10	W11700301		Assembly, Water Valve   (Replaces: W11580309)				$ 211.46
11	W11736461		Water Filter		Appelez-nous	-
12	WP2186494B		Cap, Water Filter   (Replaces: W10281557)			Immediately	$ 50.27
13	W11665655		Inlet Tube, Ice Maker		Appelez-nous	-
14	W11707764		Icemaker   (Replaces: W11580297)			Immediately	$ 484.15

    View Diagram in Separate Window       Print Part List
