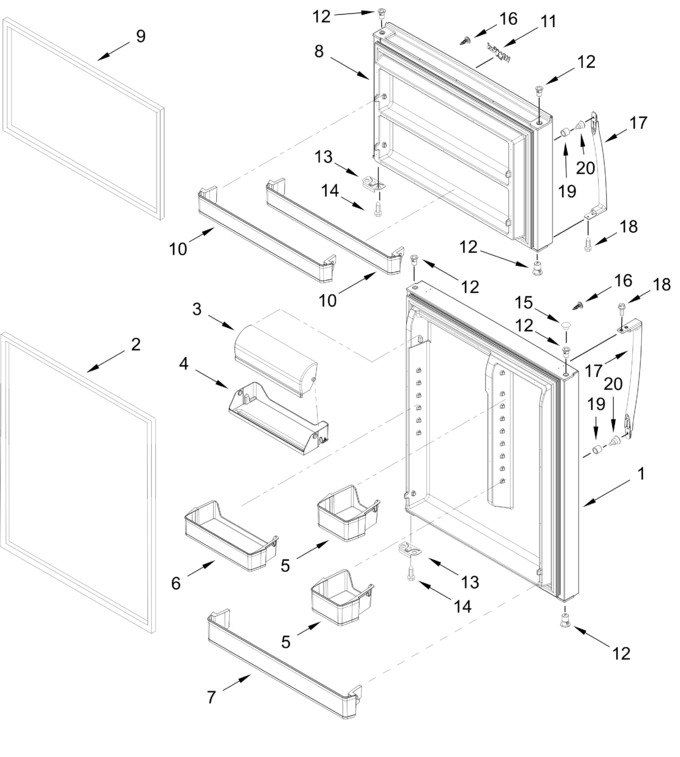

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826649		Door, Refrigerator (white, Includes Door Gasket)   (Replaces: W11776728)		Appelez-nous	-
2	W10860480		Gasket, Door (white)   (Replaces: W11406596)				$ 278.77
3	W11675283		Compartment, Door   (Replaces: W10601425)				$ 30.91
4	W11829865		Bin, Rc Door Daily Base   (Replaces: W11700174)		Appelez-nous	-
5	W11829842		Bin, Rc Door (short)   (Replaces: W11757100)		Appelez-nous	-
6	W11807631		Bin, Rc Door (large)   (Replaces: W11750600)				$ 50.84
7	W11829843		Bin, Rc Door (xl)   (Replaces: W11757085)		Appelez-nous	-
8	W11826366		Door, Freezer (white, Includes Door Gasket)   (Replaces: W11776713)		Appelez-nous	-
9	W10741118		Gasket, Door (white)   (Replaces: W11406593)				$ 298.83
10	W11829864		Bin, Fc Door (xl)   (Replaces: W11757084)		Appelez-nous	-
11	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
12	W11759045		Thimble, Top (white)   (Replaces: W10492018)			Immediately	$ 11.11
13	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
14	W10276642		Screw   (Replaces: 8533904)				$ 5.77
15	WP2212648		Plug, Hinge Hole (white)   (Replaces: 2212648)			Immediately	$ 7.37
16	W10830984		Hole Plug, Handle (white)   (Replaces: W10663736)				$ 7.54
17	W10837577		Handle, Door (white)   (Replaces: W10580723)			Immediately	$ 95.62
18	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
19	WPW10511911		Bushing, Handle   (Replaces: W10511911)				$ 14.50
20	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.69
