SELECT A DIAGRAM

Cabinet Parts


Door Parts


Liner Parts


Optional Parts


Shelf Parts


Unit Parts

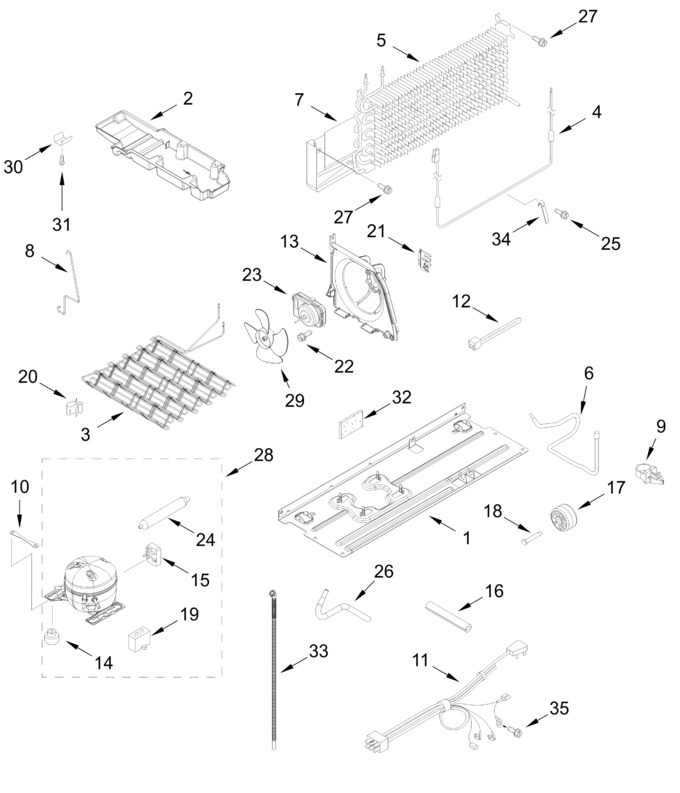

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11829866		Baseplate   (Replaces: W11682626)		Appelez-nous	-
2	W10890667		Tray, Drain   (Replaces: W10802027)				$ 151.95
3	W10609393		Condenser				$ 218.10
4	W11562215		Heater, Defrost   (Replaces: W11340898)			Immediately	$ 89.77
5	W11578004		Evaporator Assembly   (Replaces: W11282685)			Immediately	$ 221.31
6	W11741026		Tube, Suction   (Replaces: W11518248)				$ 60.33
7	W11562216		Heat Shield   (Replaces: W11377819)				$ 46.55
8	W11658620		Strap, Bale   (Replaces: W11602682)		Appelez-nous	-
9	2219077		Clip, Harness				$ 64.24
10	W10236396		Strap, Compressor			Immediately	$ 20.81
11	W11625681		Harness, Unit   (Replaces: W11430967)				$ 113.83
12	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 8.30
13	W11605794		Bracket, Condenser Fan   (Replaces: W11509373)			Immediately	$ 82.52
14	WPW10169124		Grommet, Compressor   (Replaces: 10835903)				$ 7.55
15	W11561262		Device, Start   (Replaces: W11503892)			Immediately	$ 42.92
16	W11505165		Sleeve, Drier   (Replaces: W11449167)		Appelez-nous	-
17	WPW10475495		Roller, Cabinet   (Replaces: W10475495)			Immediately	$ 32.06
18	W11594405		Axle, Rivet   (Replaces: 2179826)			Immediately	$ 19.12
19	WPW10662129		Capacitor   (Replaces: W10590083)			Immediately	$ 58.86
20	W10812039		Clip, Wire   (Replaces: 2326941)				$ 11.12
21	W11340313		Bracket, Evaporator				$ 75.36
22	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
23	W11578915		Motor, Condenser Fan   (Replaces: W11546724)			Immediately	$ 86.65
24	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 39.12
25	WP489478		Screw   (Replaces: 489478)				$ 8.18
26	W11661102		Tube, Process   (Replaces: 2174739)				$ 30.46
27	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
28	W11784632		Compressor		Appelez-nous	-
29	W11193484		Blade, Fan   (Replaces: W10817071)			Immediately	$ 101.49
30	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 19.38
31	W11544659		Screw   (Replaces: 8281232)				$ 14.35
32	W11553819		Sound Insulation   (Replaces: 2215468)			Immediately	$ 14.77
33	W11756841		Tube, Drain   (Replaces: W11577795)		Appelez-nous	-
34	W11611126		Heat Probe   (Replaces: W11399989)				$ 23.16
35	WPW10141604		Screw   (Replaces: W10141604)				$ 8.85
	ARI365422773BD6741F2B56A197441A318E		(heat Loop To Drier)		Appelez-nous	-
	W11504450		4/1.8 Nr Ms 00			Immediately	$ 46.52
	ARI7F21E2684783037DC10D795033CD2ABA		48 Grams (r600a)		Appelez-nous	-
	ARI8F052732CB60E39F6CA094A8168A5109		(process Tube To Compressor)		Appelez-nous	-
	ARI169E995E2DAC0D79856EDDCD3C362715		(suction Tube To Compressor)		Appelez-nous	-
	ARI01A2781A3F964B0DAEAA0FEA5F13BC43		(suction Line To Evaporator)		Appelez-nous	-
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
	ARI500F2B538D318C1E3390E0716ECE69B7		(also Order The Following Lokring™ Parts)		Appelez-nous	-
	ARIDC3909E200058FAFA59ECDE3D8CD23DE		(suction Line To Condenser)		Appelez-nous	-
	ARI5DD2AEE280966FBC792DC043E4E4B750		(capillary Tube To Drier)		Appelez-nous	-
	W11504445		5/4 Nr Ms 00			Immediately	$ 28.92
	W11578570		Connector (7 Mm To 4.5 Mm, Brass)   (Replaces: W11574641)			Immediately	$ 64.29
	W11504447		5/1.8 Nr Ms 00			Immediately	$ 43.90
	W11506619		8 Nk Ms 00			Immediately	$ 25.88
	W11506624		4 Nk Ms 00			Immediately	$ 20.94
	ARI3031A698A6B8030D731C976AE04824C1		(high Pressure Side To Compressor)		Appelez-nous	-
	ARI9B437A9AB478C7E2DEB1C4CC29D600EE		(capillary Tube To Evaporator)		Appelez-nous	-
	ARIF479D1A0D17290EA712C859BF2E1C691		(high Side To Condenser)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
