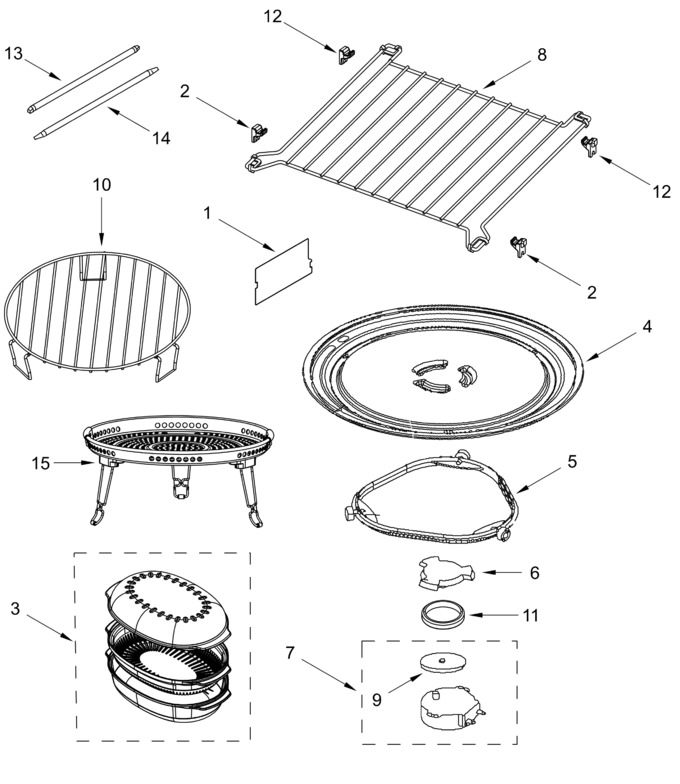

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11662373 | Cover, Waveguide (Replaces: W11361167) |
|
$ 27.70 | |||||
| 2 | W10740485 | Hook, Microwave |
|
$ 20.13 | |||||
| 3 | W10660052 | Steamer (Replaces: W10857799) |
|
Immediately | $ 27.02 | ||||
| 4 | W11402532 | Turntable (Replaces: W11358813) |
|
Immediately | $ 58.86 | ||||
| 5 | W10679313 | Ring, Turntable |
|
$ 87.70 | |||||
| 6 | W10337248 | Driver, Turntable |
|
Immediately | $ 7.05 | ||||
| 7 | WPW10466420 | Motor, Turntable (Replaces: W10466420) |
|
Immediately | $ 50.93 | ||||
| 8 | W10860255 | Rack, Microwave (Replaces: W10637931) |
|
Immediately | $ 32.85 | ||||
| 9 | 8184109 | Seal, Waterproof |
|
$ 6.57 | |||||
| 10 | W10440082 | Rack, Convection |
|
$ 14.87 | |||||
| 11 | W10568148 | Seal, Turntable Block |
|
Immediately | $ 28.86 | ||||
| 12 | W10573936 | Hook, Microwave |
|
$ 26.73 | |||||
| 13 | WP8184837 | Element, Grill Halogen (Replaces: 8184837) |
|
$ 287.44 | |||||
| 14 | WPW10510203 | Heater, Quartz Grill (Replaces: W10510203) |
|
$ 206.82 | |||||
| 15 | W11833982 | Basket, Air Fry (Replaces: W11801498) |
|
Immediately | $ 77.79 | ||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- | ||||||
| ARI331AC8E6A0B32951011383800D6FC3B6 | (left Front, Right Front) |
|
- |
