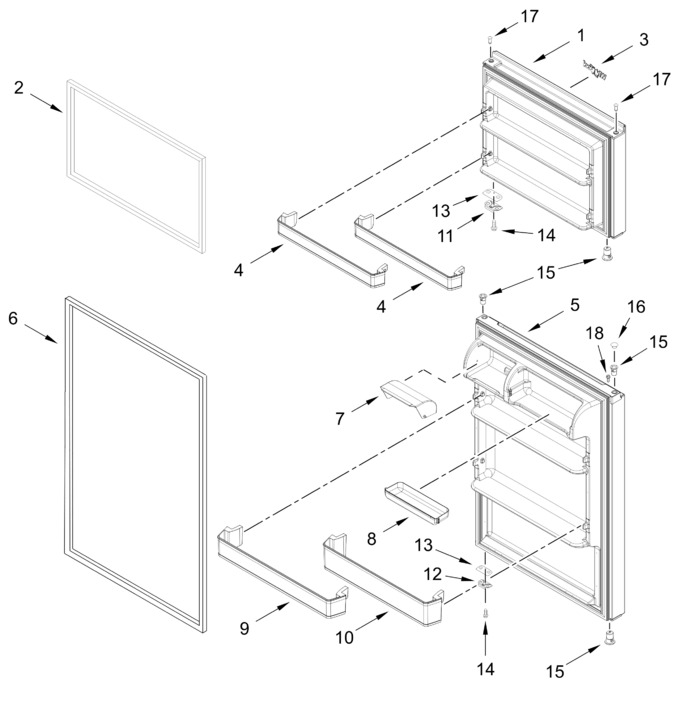

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826359		Freezer Door Assembly (black, Includes Door Gasket)   (Replaces: W11778286)				$ 143.88
2	WP2319263B		Gasket, Fc Door (black)   (Replaces: 2264722)				$ 268.28
3	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
4	W11830190		Bin, Door (fc)   (Replaces: W11767123)		Appelez-nous	-
5	W11826642		Refrigerator Door Assembly (black, Includes Door Gasket)   (Replaces: W11778291)				$ 195.96
6	2319265B		Gasket, Rc Door (black)   (Replaces: 2264724)				$ 329.50
7	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 73.21
8	W11831826		Bin, Rc Door Tray   (Replaces: W11764418)		Appelez-nous	-
9	W11831819		Bin, Rc Door (top)   (Replaces: W11767327)		Appelez-nous	-
10	W11831824		Bin, Rc Door (interm)   (Replaces: W11757898)		Appelez-nous	-
11	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
12	W10492012		Bracket, Door Stop				$ 16.85
13	2258681B		Shim, Door Stop (black)				$ 45.33
14	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
15	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 12.71
16	WP2212651		Plug, Hinge Hole (black)   (Replaces: 2212651)				$ 24.21
17	WP2182181		Thimble, Top (white)   (Replaces: 2200087)				$ 8.15
18	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
