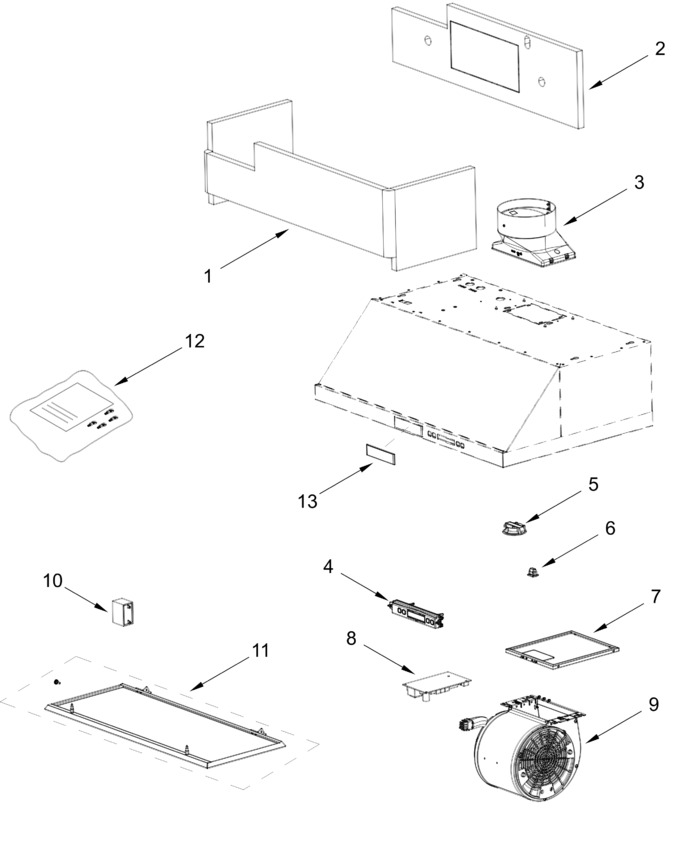

Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10735396 | Insulation (36 Inch) |
|
- | |||||
| 2 | W11684913 | Insulation, Back (36 Inch) (Replaces: W10735397) |
|
- | |||||
| 3 | W11516461 | Damper (Replaces: W11512452) |
|
Immediately | $ 108.93 | ||||
| 4 | W11671895 | Control, Electronic (Replaces: W11671538) |
|
$ 346.48 | |||||
| 5 | W11794237 | Light, Led (Replaces: W11794122) |
|
Immediately | $ 76.20 | ||||
| 6 | W10854245 | Clip, Panel (Replaces: W10735735) |
|
Immediately | $ 68.03 | ||||
| 7 | W10915369 | Filter, Grease (Replaces: W10727013) |
|
Immediately | $ 39.73 | ||||
| 8 | W11613025 | Board, Power (Replaces: W11612969) |
|
$ 332.58 | |||||
| 9 | W11035826 | Blower, Fan (Replaces: W10727058) |
|
Immediately | $ 388.39 | ||||
| 10 | W11715950 | Capacitor (25 Mf) (Replaces: W11245979) |
|
Immediately | $ 91.53 | ||||
| 11 | W10735373 | Panel, Perimetric (36 Inch) |
|
$ 207.52 | |||||
| 12 | W11281881 | Hardware, Installation |
|
$ 118.43 | |||||
| 13 | W11783546 | Badge (Replaces: W11688411) |
|
- |
