SELECT A DIAGRAM

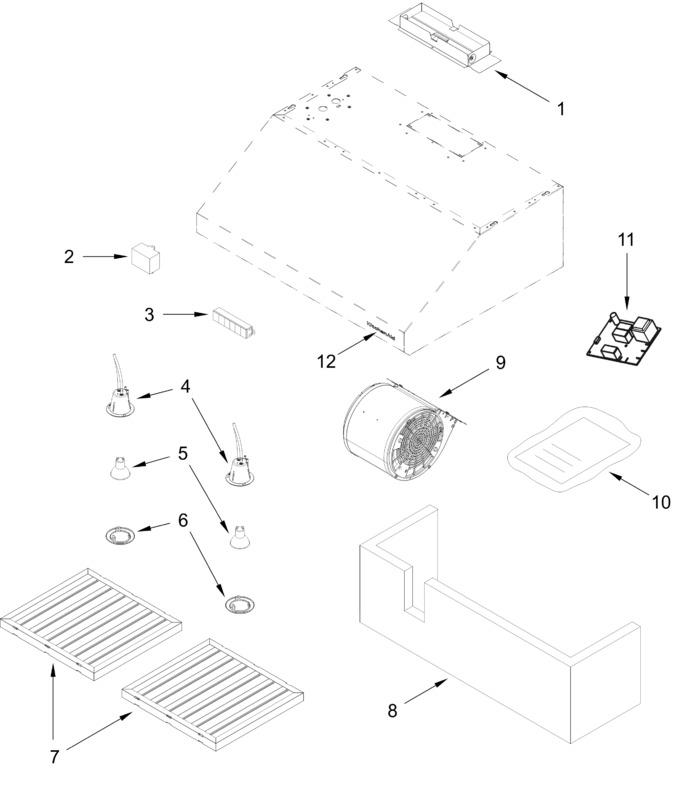

Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11516461 | Damper (Replaces: W11512452) |
|
Immediately | $ 108.93 | ||||
| 2 | W11715950 | Capacitor (25 Mf) (Replaces: W11245979) |
|
Immediately | $ 91.53 | ||||
| 3 | W11516463 | Control (Replaces: W11514909) |
|
$ 329.74 | |||||
| 4 | W11512046 | Housing, Lamp |
|
- | |||||
| 5 | W11800238 | Lamp, Led (Replaces: W11799463) |
|
Immediately | $ 78.87 | ||||
| 6 | W10351924 | Bezel, Lamp |
|
$ 177.83 | |||||
| 7 | W10351890 | Filter, Grease |
|
$ 106.13 | |||||
| 8 | W11518271 | Insulation (30 Inch) (Replaces: W11514915) |
|
- | |||||
| 9 | W11035826 | Blower, Fan (Replaces: W10727058) |
|
Immediately | $ 388.39 | ||||
| 10 | W11514919 | Hardware, Installation |
|
$ 102.08 | |||||
| 11 | W11700319 | Filter, Noise (Replaces: W11565531) |
|
$ 226.79 | |||||
| 12 | W11783546 | Badge (Replaces: W11688411) |
|
- |
