SELECT A DIAGRAM

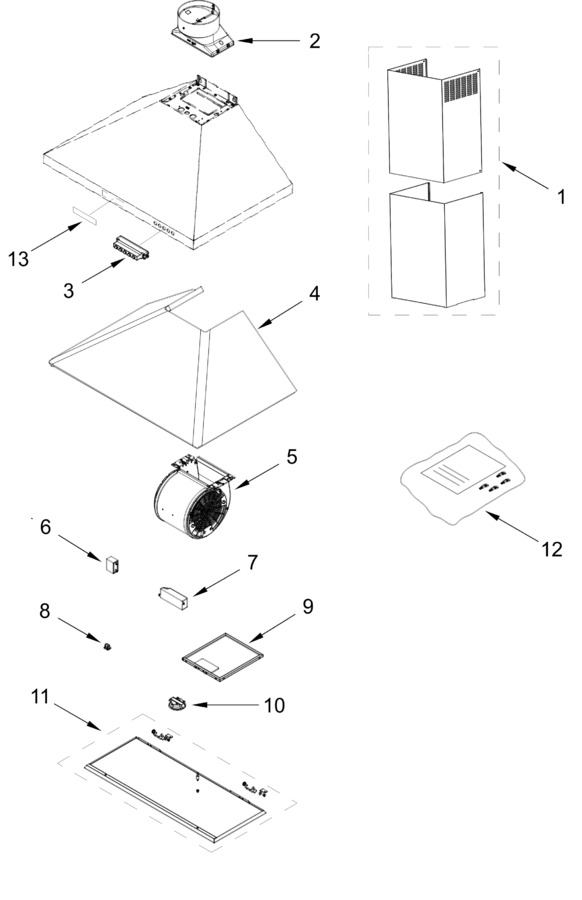

Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11417192 | Chimney, Upper And Lower (Replaces: W11354650) |
|
$ 338.23 | |||||
| 2 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 140.43 | |||||
| 3 | WPW10727063 | Control, Electronic (Replaces: W10727063) |
|
$ 234.46 | |||||
| 4 | W11688813 | Insulation (30 Inch) (Replaces: W10735403) |
|
Immediately | $ 223.27 | ||||
| 5 | W11351717 | Motor, Blower (Replaces: W11351634) |
|
Immediately | $ 359.06 | ||||
| 6 | W11328673 | Capacitor |
|
Immediately | $ 59.00 | ||||
| 7 | W11282989 | Driver, Led (Replaces: W11281878) |
|
$ 237.02 | |||||
| 8 | W10854245 | Clip, Panel (Replaces: W10735735) |
|
Immediately | $ 68.03 | ||||
| 9 | W10915369 | Filter, Grease (Replaces: W10727013) |
|
Immediately | $ 39.73 | ||||
| 10 | W11794237 | Light, Led (Replaces: W11794122) |
|
Immediately | $ 76.20 | ||||
| 11 | W10735352 | Panel, Perimetric (30 Inch) |
|
$ 199.36 | |||||
| 12 | W11038859 | Hardware, Installation |
|
$ 95.13 | |||||
| 13 | W11783546 | Badge (Replaces: W11688411) |
|
- |
