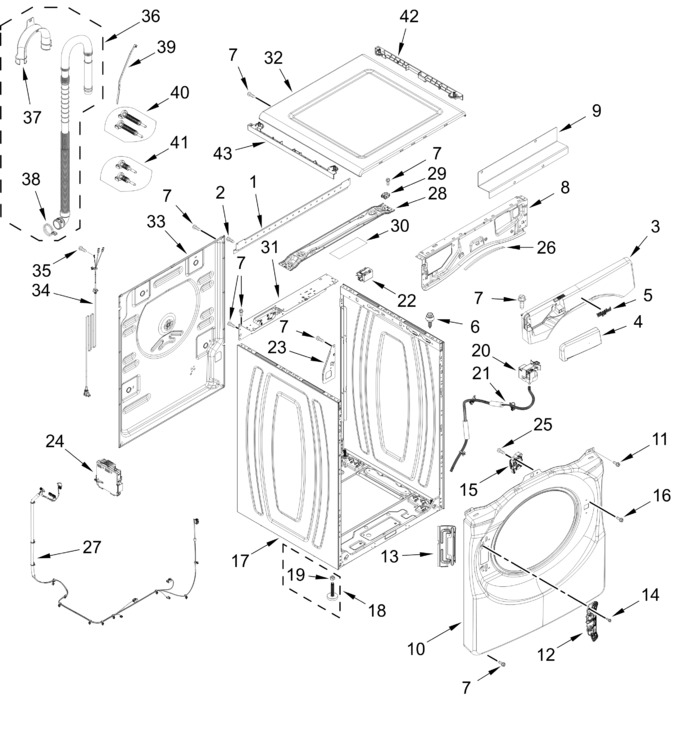

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11825359 | Bracket, Rear (Replaces: W11782241) |
|
- | |||||
| 2 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 3 | W11825366 | Console Dispenser, Front (white) (Replaces: W11779808) |
|
- | |||||
| 4 | W11825365 | Handle, Dispenser (white) (Replaces: W11787611) |
|
- | |||||
| 5 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 78.53 | ||||
| 6 | W10208380 | Screw And Bushing Assembly |
|
$ 65.23 | |||||
| 7 | W11568617 | Screw (Replaces: W10567155) |
|
$ 13.25 | |||||
| 8 | W11314678 | Bracket, Console (Replaces: W10915381) |
|
$ 140.42 | |||||
| 9 | W11825358 | Bracket, Front (Replaces: W11782238) |
|
- | |||||
| 10 | W11747097 | Panel, Front (white) (Replaces: W11710567) |
|
$ 317.32 | |||||
| 11 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.59 | ||||
| 12 | W11742046 | Assembly, Hinge (Replaces: W11668720) |
|
Immediately | $ 146.08 | ||||
| 13 | W11747862 | Bracket, Hinge (Replaces: W11715541) |
|
$ 45.67 | |||||
| 14 | W11661566 | Screw (Replaces: W10288126) |
|
$ 13.26 | |||||
| 15 | W11733849 | Lock, Door (Replaces: W11670890) |
|
Immediately | $ 66.56 | ||||
| 16 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 10.93 | |||||
| 17 | W11352995 | Cabinet (white) |
|
Immediately | $ 472.64 | ||||
| 18 | W11675697 | Leveling Leg Assembly (Replaces: W11604388) |
|
Immediately | $ 12.83 | ||||
| 19 | W11675698 | Nut, Hex (Replaces: W11599138) |
|
$ 12.20 | |||||
| 20 | W11316246 | Pressure Switch (Replaces: W11125159) |
|
Immediately | $ 112.52 | ||||
| 21 | W11456953 | Hose, Pressure Switch (Replaces: W11319791) |
|
Immediately | $ 31.41 | ||||
| 22 | W11689659 | Rfi Filter (Replaces: W11533492) |
|
Immediately | $ 20.24 | ||||
| 23 | W11316769 | Bracket, Drain Hose (Replaces: W11091443) |
|
Immediately | $ 19.88 | ||||
| 24 | W11825356 | Appliance Control Unit (acu) (Replaces: W11787397) |
|
- | |||||
| 25 | W10306501 | Screw |
|
- | |||||
| 26 | W11316770 | Edge Guard (Replaces: W10407376) |
|
- | |||||
| 27 | W11825357 | Harness, Main (Replaces: W11772294) |
|
- | |||||
| 28 | W10467484 | Brace, Top |
|
$ 40.48 | |||||
| 29 | W11846996 | Retainer, Spring (Replaces: W10245452) |
|
$ 9.06 | |||||
| 30 | W11314674 | Foam Pad (Replaces: W10331064) |
|
$ 17.91 | |||||
| 31 | W11353016 | Bracket, Rear |
|
$ 22.43 | |||||
| 32 | WPW10208373 | Top (white) (Replaces: W10208373) |
|
$ 302.83 | |||||
| 33 | W11491750 | Panel, Rear (Replaces: W11420275) |
|
Immediately | $ 325.44 | ||||
| 34 | W11316254 | Cord, Power (Replaces: W10919946) |
|
Immediately | $ 121.06 | ||||
| 35 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 36 | W11281268 | Hose, Drain (external) (Replaces: W10267638) |
|
Immediately | $ 19.93 | ||||
| 37 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 75.16 | |||||
| 38 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 39 | WPW10339879 | Cable Tie (Replaces: W10267532) |
|
$ 7.47 | |||||
| 40 | W11316631 | Bolt, Transport (long) (Replaces: W11041287) |
|
$ 38.30 | |||||
| 41 | W11316629 | Bolt, Transport (short) (Replaces: W11041011) |
|
$ 39.36 | |||||
| 42 | W11825373 | Collar (right) (Replaces: W11782180) |
|
- | |||||
| 43 | W11825372 | Collar (left) (Replaces: W11782182) |
|
- |
