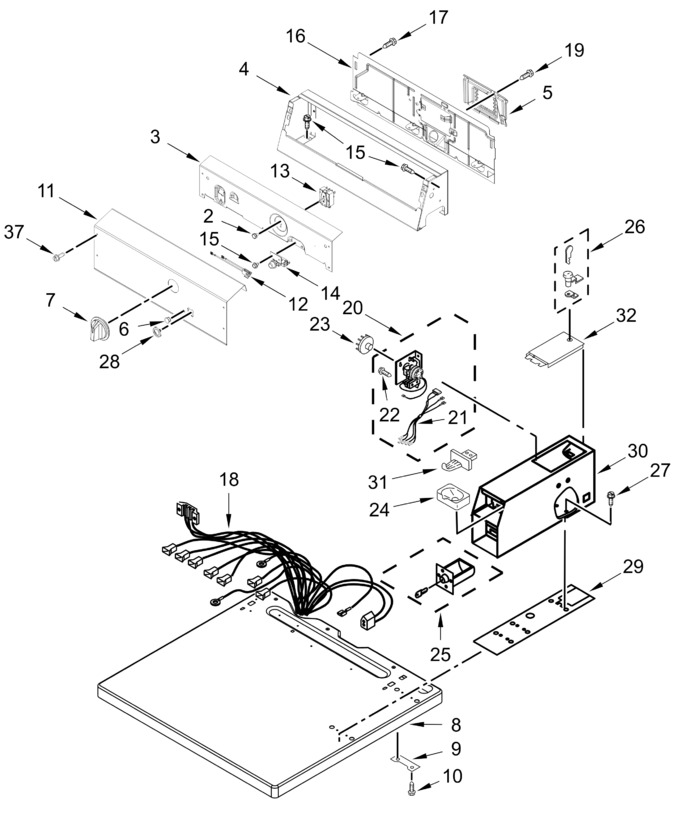

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.57 | |||||
| 2 | W10139100 | Screw |
|
$ 11.71 | |||||
| 3 | W10461070 | Bracket Control |
|
$ 134.07 | |||||
| 4 | W10461094 | Console (white) |
|
$ 167.97 | |||||
| 5 | WPW10119283 | Cover, Terminal Block (Replaces: W10286180) |
|
$ 121.29 | |||||
| 6 | WPW10133502 | Assembly, Indicator Lights (Replaces: W10133502) |
|
$ 12.16 | |||||
| 7 | W10492415 | Knob (grey) |
|
$ 18.56 | |||||
| 8 | W10492412 | Top (white) |
|
- | |||||
| 9 | 3347825 | Plate, Mounting |
|
- | |||||
| 10 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 11 | W10845275 | Fascia |
|
$ 249.08 | |||||
| 12 | W10662107 | Lamp, Indicator |
|
$ 24.46 | |||||
| 13 | WPW10327105 | Switch, Cycle Selection (Replaces: W10327105) |
|
$ 152.77 | |||||
| 14 | W11097274 | Switch, Push To Start (Replaces: W10424310) |
|
$ 63.75 | |||||
| 15 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 16 | W11089934 | Panel, Rear (console) (Replaces: W10863354) |
|
$ 269.69 | |||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 18 | W11121427 | Harness, Main |
|
- | |||||
| 19 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 20 | W11811195 | Assembly, Timer & Harness (Replaces: W11772386) |
|
- | |||||
| 21 | W10177791 | Harness, Timer |
|
- | |||||
| 22 | 339805 | Screw |
|
$ 12.65 | |||||
| 23 | WP3387974 | Timing Cam, 3-pin (60 Minutes) (Replaces: 3387974) |
|
$ 7.87 | |||||
| 24 | W10133509 | Funnel, Coin |
|
$ 78.22 | |||||
| 25 | W11190039 | Money Box With Lock (Replaces: W10860203) |
|
Immediately | $ 177.61 | ||||
| 26 | ARIF48D21EAA7BC7CE4174EA2D1193A131A | Key (service Door) (when Ordering, Specify Vendor And Key Number) |
|
- | |||||
| 27 | W11715721 | Bolt (Replaces: 3349065) |
|
$ 6.73 | |||||
| 28 | W10510149 | Bezel - Pts |
|
Immediately | $ 25.77 | ||||
| 29 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 29.39 | |||||
| 30 | WPW10529172 | Meter Case (Replaces: W10529172) |
|
$ 345.34 | |||||
| 31 | W11810086 | Coin Chute (vertical 8) |
|
- | |||||
| 32 | W11283272 | Assembly, Service Door (Replaces: W11269277) |
|
$ 100.05 | |||||
| 51-161-6 | Timing Cam, 6-pin (30 Minutes) (Replaces: 343777) |
|
$ 31.07 | ||||||
| ARIC574580760DE44D2C6FB66D8BE4C6D4A | Esd |
|
- | ||||||
| WPW10114740 | 777 Lock And Key, Complete (Replaces: W10114740) |
|
$ 123.74 |
